Section 4: Triggering Series 2600B System SourceMeter® instrument Reference Manual
4-34 2600BS-901-01 Rev. F/August 2021
Either edge trigger mode
The either edge trigger mode generates a low pulse and detects both rising and falling edges.
Input characteristics:
• All rising or falling edges generate an input trigger event.

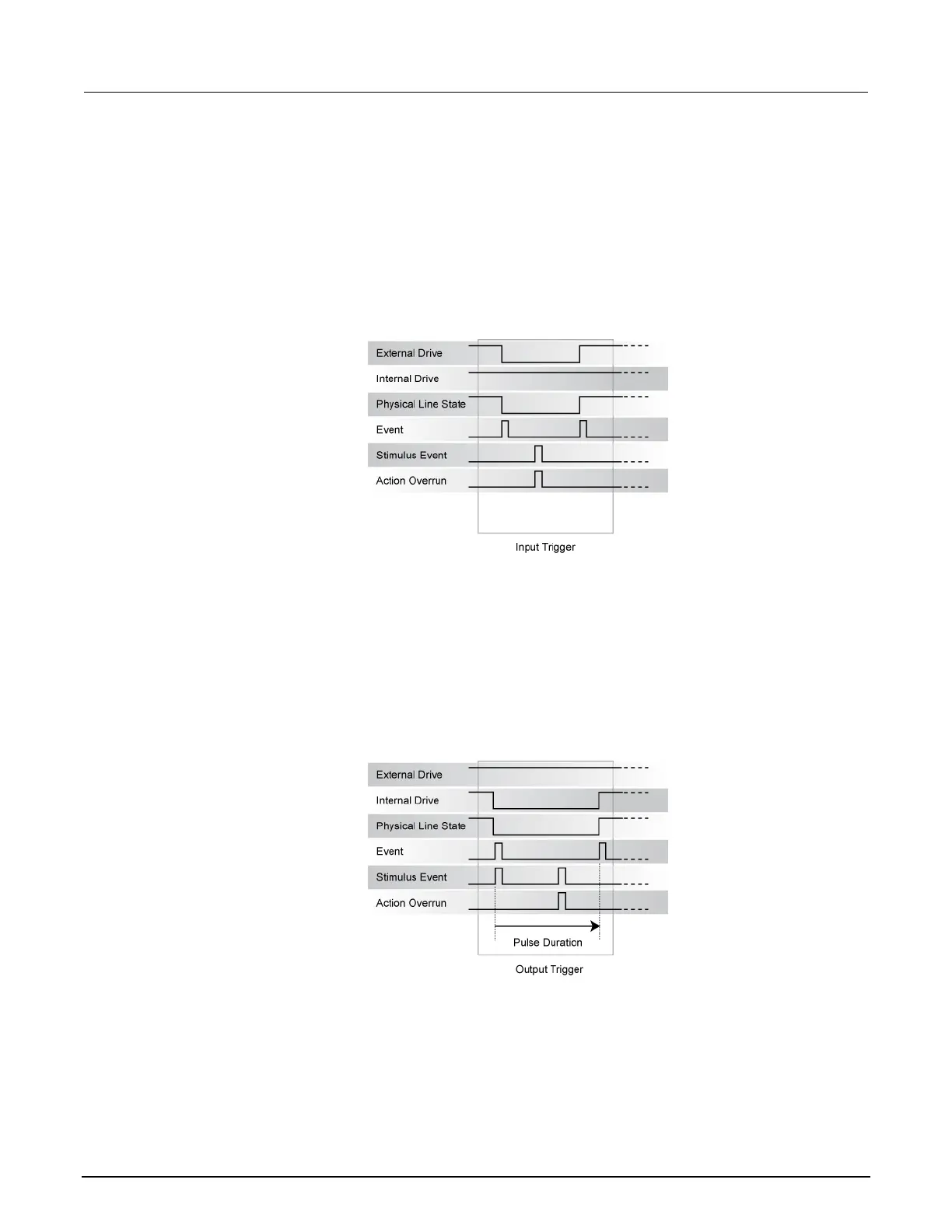

Figure 48: Either edge input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() commands generate a low pulse that is similar to the falling
edge trigger mode.
• An action overrun occurs if the physical line state is low while a stimulus event occurs.
Figure 49: Either edge output trigger
