Tektronix KEITHLEY 2600B Series User Manual

Section 2: Sourcing and measuring Series 2600B System SourceMeter® instrument Reference Manual
2-60 2600BS-901-01 Rev. F/August 2021

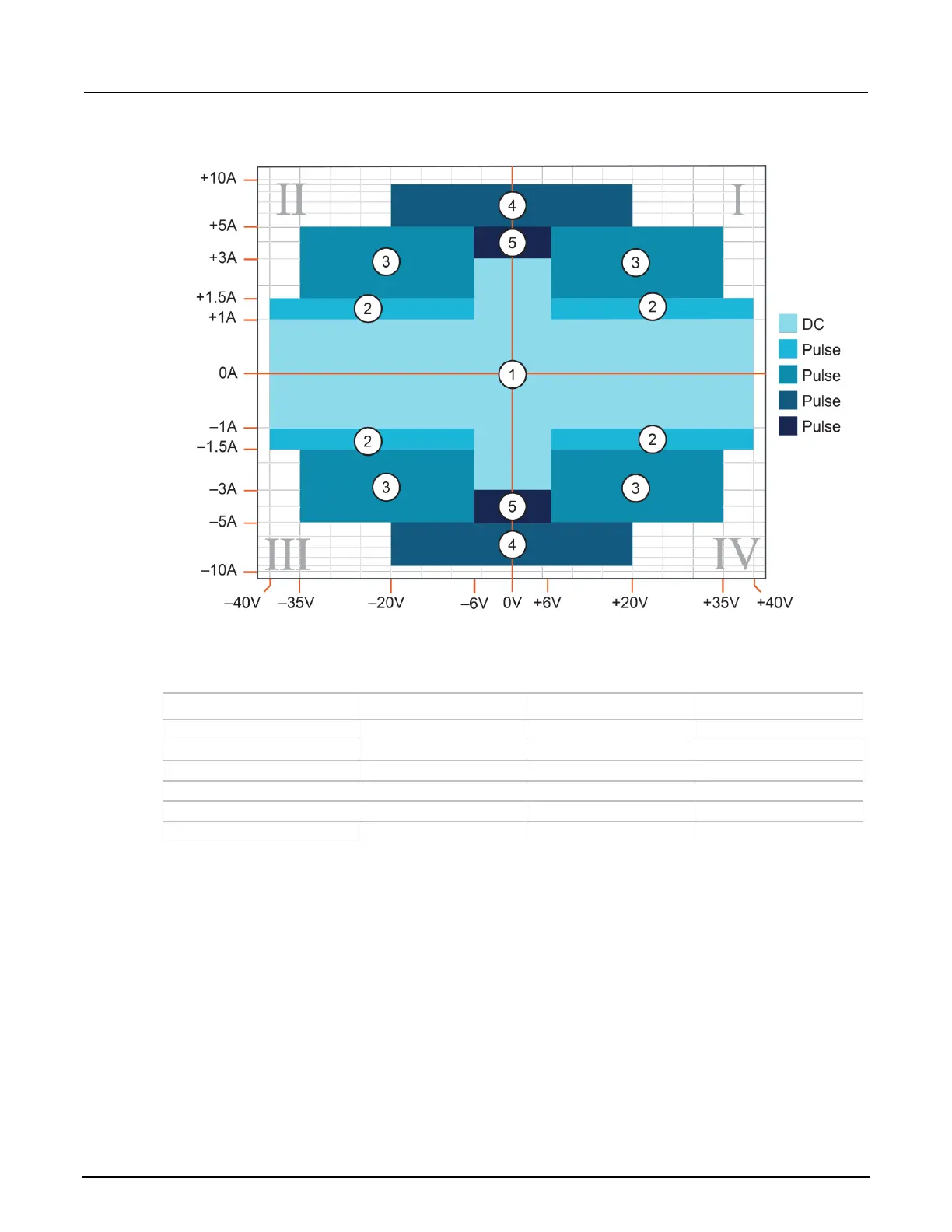

Figure 29: Pulsing in the extended operating area
Pulse region specification
Region (quadrant diagram)
Region maximum
Maximum pulse width
Maximum duty cycle
1
1 A at 40 V
DC, no limit
100%
1
3 A at 6 V
DC, no limit
100%
2
1.5 A at 40 V
100 ms
25%
3
5 A at 35 V
4 ms
4%
4
10 A at 20 V
1.8 ms
1%
5
5 A at 6 V
10 ms
10%
Configuring and running sweeps
Use the following topics to configure and run a sweep.
