Series 2600B System SourceMeter® instrument Reference Manual Section 4: Triggering
2600BS-901-01 Rev. F/August 2021 4-31
Falling edge trigger mode
The falling edge trigger mode generates low pulses and detects all falling edges. The figure titled
"Falling edge input trigger" shows the characteristics of the falling edge input trigger; the figure titled
"Falling edge output trigger" shows the falling edge output trigger.
Input characteristics:
• Detects all falling edges as input triggers.

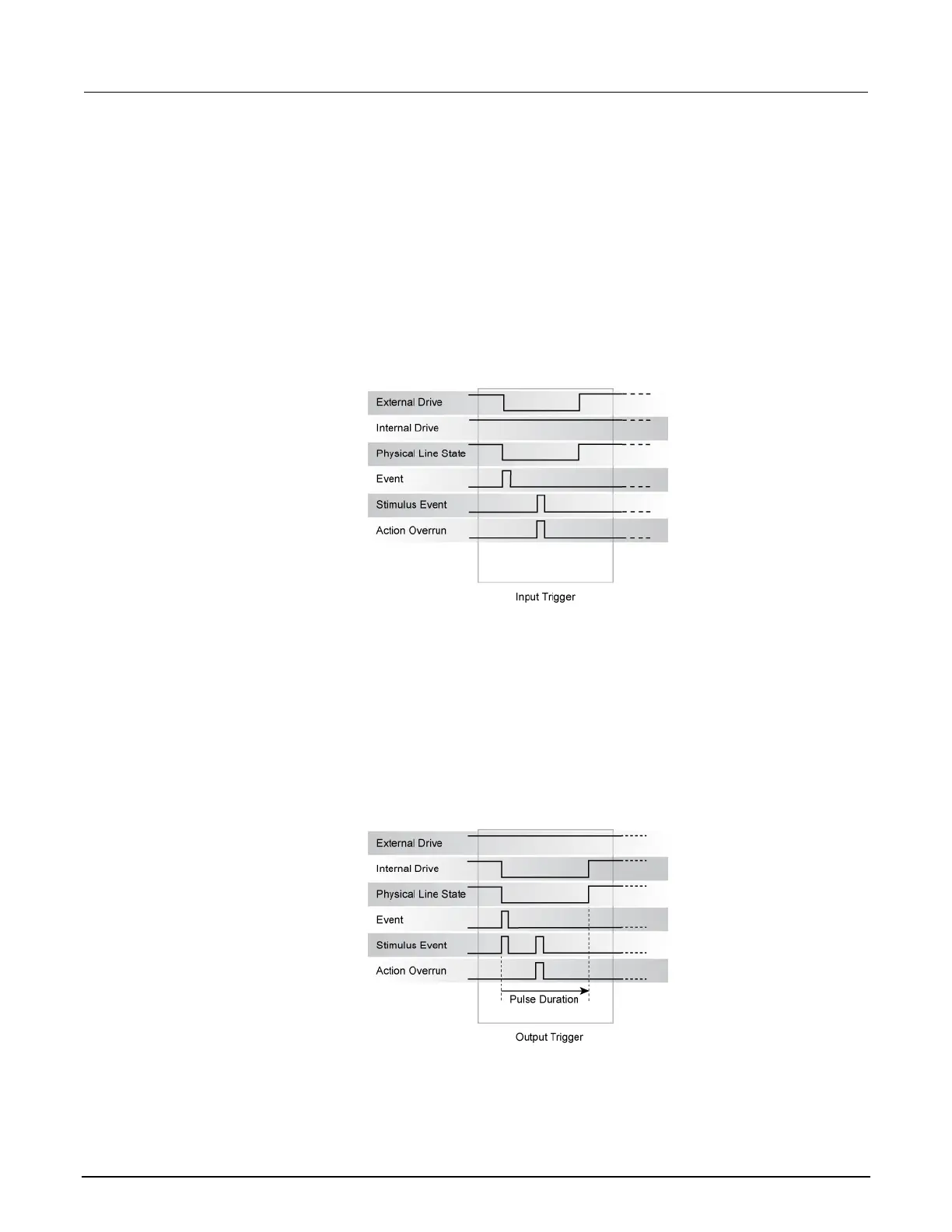

Figure 43: Falling edge input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() commands generate a low pulse for the programmed pulse
duration.
• An action overrun occurs if the physical line state is low and a source event occurs.
Figure 44: Falling edge output trigger
