Series 2600B System SourceMeter® instrument Reference Manual Section 4: Triggering
2600BS-901-01 Rev. F/August 2021 4-33
Rising edge acceptor trigger mode
The rising edge acceptor trigger mode (RisingA) generates a low pulse and detects rising edge
pulses. Refer to the following figures.
Input characteristics:
• All rising edges generate an input event.

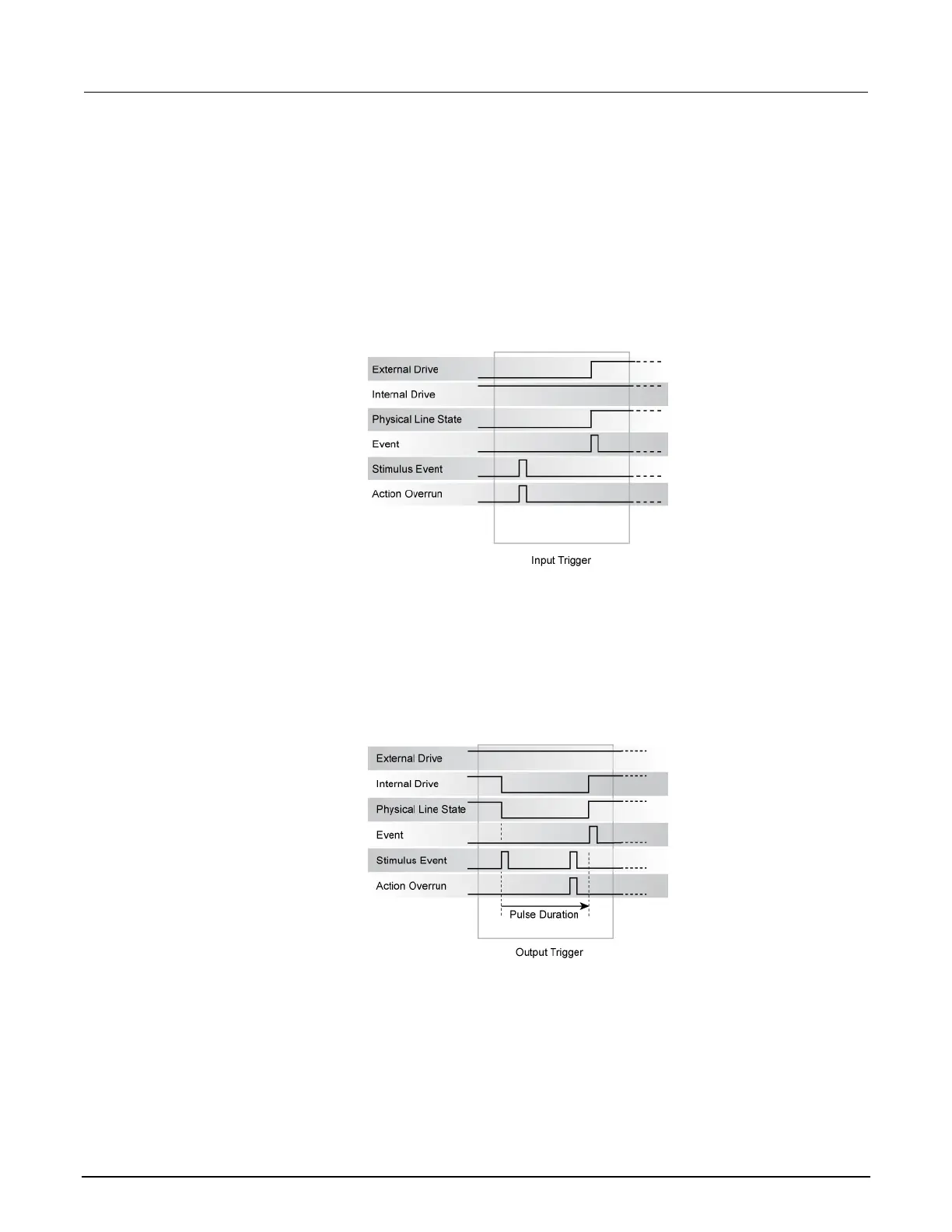

Figure 46: RisingA input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() commands generate a low pulse that is similar to the falling
edge trigger mode.
Figure 47: RisingA output trigger
