Series 2600B System SourceMeter® instrument Reference Manual Section 2: Sourcing and measuring
2600BS-901-01 Rev. F/August 2021 2-29
Pulse characteristics for the 2611B, 2612B, 2614B, 2634B, 2635B,
and 2636B
The following figure and table illustrate the pulse regions for each SMU. The programmed current and
voltage levels for both SMUs must fall within the same pulse region. Refer to the 2600B specifications
on tek.com/keithley for the latest pulse width and duty cycle information. Measurements are given
priority over source and display operations, so make sure that the measurement time does not
exceed the allowable pulse width and duty cycle in a particular pulse region.

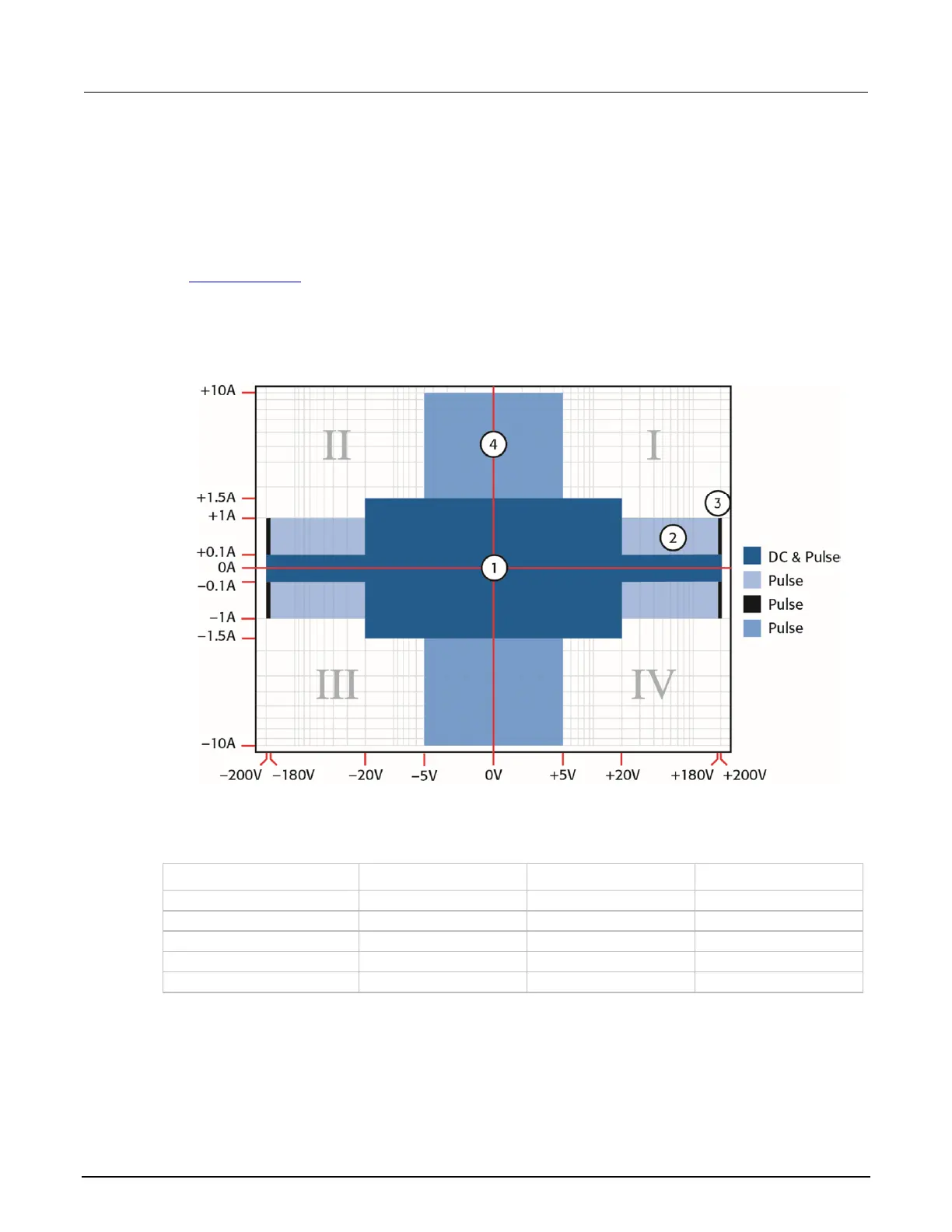

Figure 15: Pulse region characteristics for 2611B, 2612B, 2614B, 2634B, 2635B, and 2636B
Pulse region specifications
Region (quadrant diagram)
Region maximum
Maximum pulse width
Maximum duty cycle
1
100 mA at 200 V
DC, no limit
100%
1
1.5 A at 20 V
DC, no limit
100%
2
1 A at 180 V
8.5 ms
1%
3
1 A at 200 V
2.2 ms
1%
4
10 A at 5 V
1 ms
2.2%
