Pulse characteristics for the 2601B, 2602B, and 2604B
The following figure and table illustrate the pulse regions for each SMU. The programmed current and
voltage levels for both SMUs must fall within the same pulse region. Refer to the 2600B specifications
on tek.com/keithley for the latest pulse width and duty cycle information. Measurements are given
priority over source and display operations, so make sure that the measurement time does not
exceed the allowable pulse width and duty cycle in a particular pulse region.

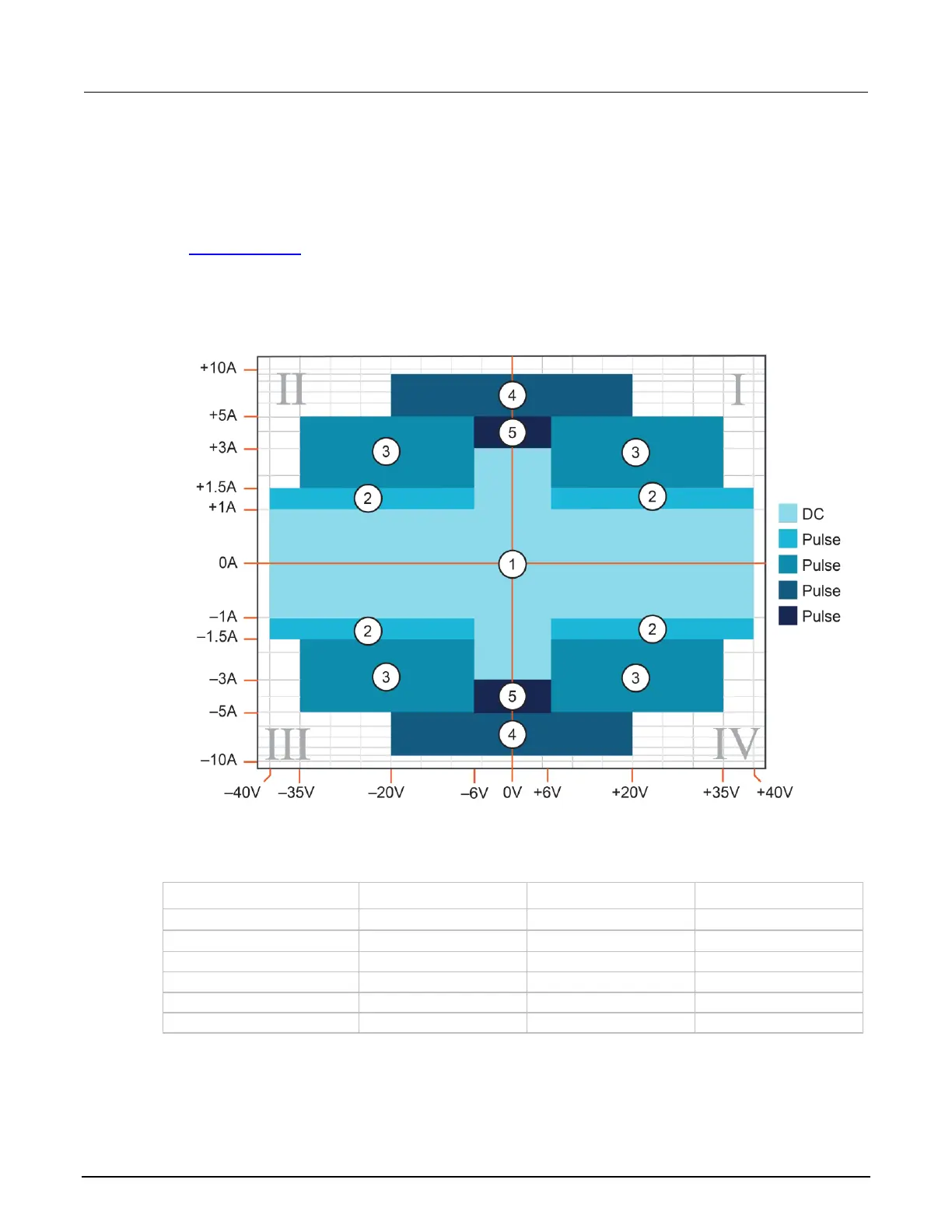

Figure 14: Pulse regions
Pulse region specification
Region (quadrant diagram)
Region maximum
Maximum pulse width
Maximum duty cycle
1
1 A at 40 V
DC, no limit
100%
1
3 A at 6 V
DC, no limit
100%
2
1.5 A at 40 V
100 ms
25%
3
5 A at 35 V
4 ms
4%
4
10 A at 20 V
1.8 ms
1%
5
5 A at 6 V
10 ms
10%
