Series 2600B System SourceMeter® instrument Reference Manual Section 4: Triggering
2600BS-901-01 Rev. F/August 2021 4-45

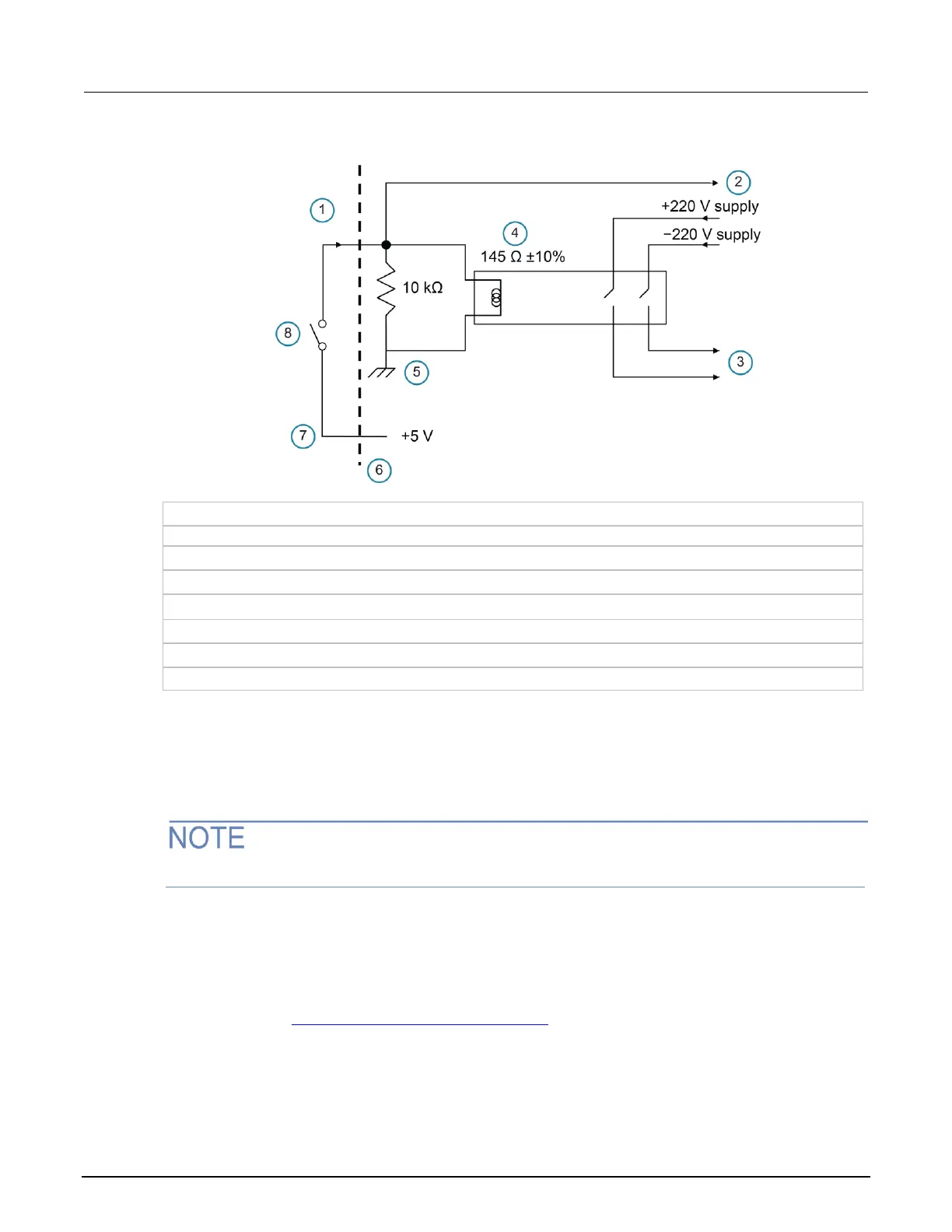

Figure 59: Using 2611B, 2612B, 2614B, 2634B, 2635B, and 2636B interlock
1 INTERLOCK pin (on DIGITAL I/O or INTERLOCK connector) pin 24
2 Read by firmware
3 To output stage
4 Coil resistance
5 Chassis ground
6 Rear panel
7 Pin 23
8 Closing switch enables 200 V operation
TSP-Link trigger lines
The 2600B has three trigger lines that you can use for triggering, digital I/O, and to synchronize
multiple instruments on a TSP-Link
®
network.
The 2604B, 2614B, and 2634B do not have a TSP-Link
®
interface.
Connecting to the TSP-Link system
The TSP-Link
®
trigger lines are built into the TSP-Link connection. Use the TSP-Link connectors on
the back of the 2600B. If you are using a TSP-Link network, you do not have to modify any
connections. See TSP-Link system expansion interface (on page 8-83) for detailed information about
connecting to the TSP-Link system.
