Section 9: TSP command reference Series 2600B System SourceMeter® instrument Reference Manual

9-44 2600BS-901-01 Rev. F/August 2021

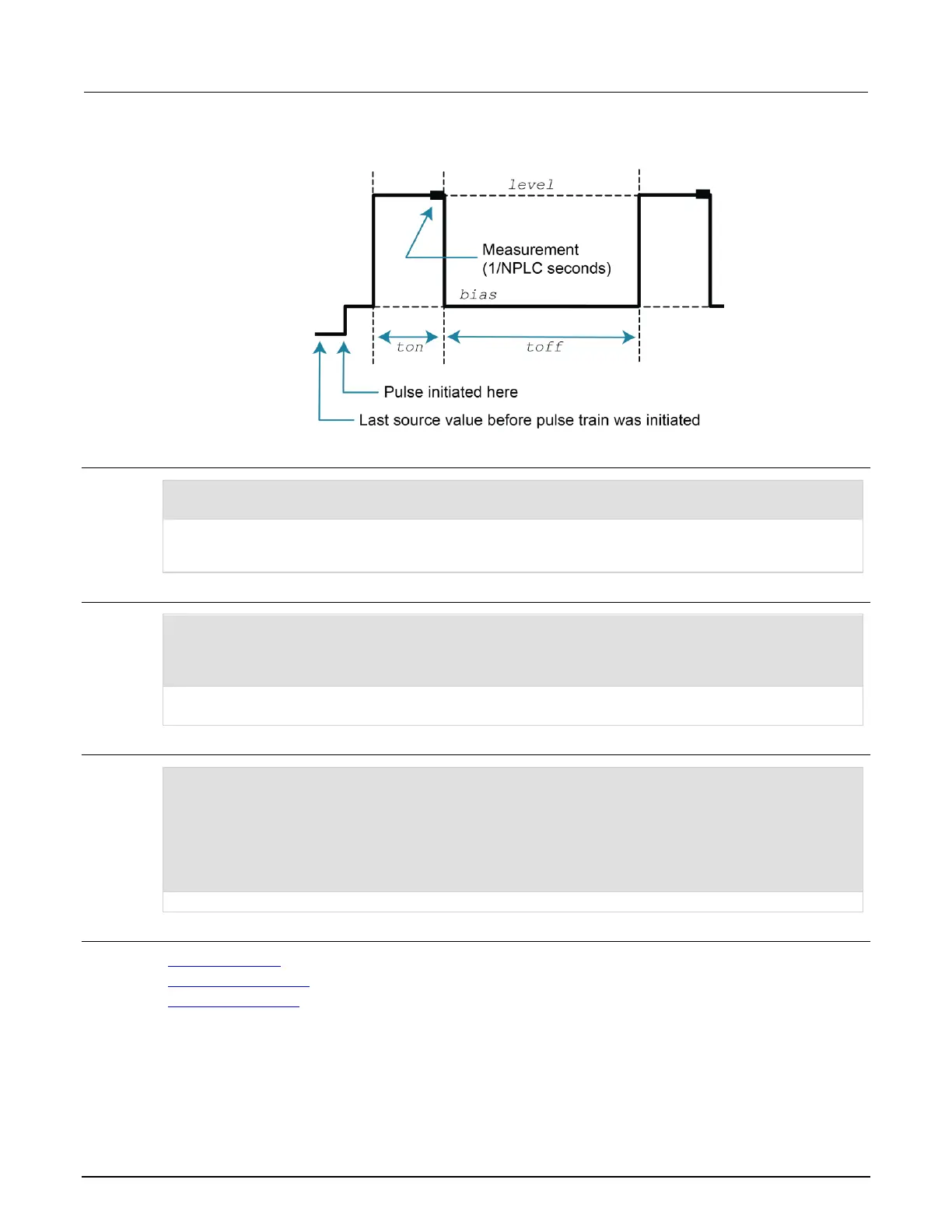

Figure 119: ConfigPulseVMeasureI()

Example 1

ConfigPulseVMeasureI(smua, 0, 20, 1, 0.001, 0.080, 10, smua.nvbuffer1, 2)

Set up a pulse train that uses channel A. The pulse amplitude is 20 V and returns to 0 V after 1 ms. The pulse

remains at 0 V for 80 ms, and the current limit is 1 A during the pulse. The pulse train consists of 10 pulses,

and the pulse train is assigned a tag index of 2.

Example 2

local timelist = { 1, 2, 3, 4, 5 }

f, msg = ConfigPulseVMeasureI(smua, 0, 1,

100e-3, 1, timelist, 5, nil, 1)

Variable off time between pulses in a pulse train.

Configure a pulse with 1 second on-time and variable off-time, no measurement.

Example 3

rbi = smua.makebuffer(10)

rbv = smua.makebuffer(10)

rbi.appendmode = 1

rbv.appendmode = 1

rbs = { i = rbi, v = rbv }

f, msg = ConfigPulseVMeasureI(smua, 0, 10, 1e-3, 1e-3, 1e-3, 2, rbs, 1)

Simultaneous IV measurement during pulse.

Also see

InitiatePulseTest() (on page 9-113)

InitiatePulseTestDual() (on page 9-115)

KIPulse factory script (on page 7-22)
