The affected status registers for the above commands are indicated by labels A, B and C (see
following figure).
Master node system summary registers: The following commands enable the required system
summary bits for node 15:
status.system2.enable = 2
status.system.enable = 1
The affected system summary registers for the above commands are indicated by labels D and E
(see following figure).
Master node service request: The following command enables the service request for the
measurement event:
status.request_enable = 1
The affected status register for the above command is indicated by label E (see the following figure).

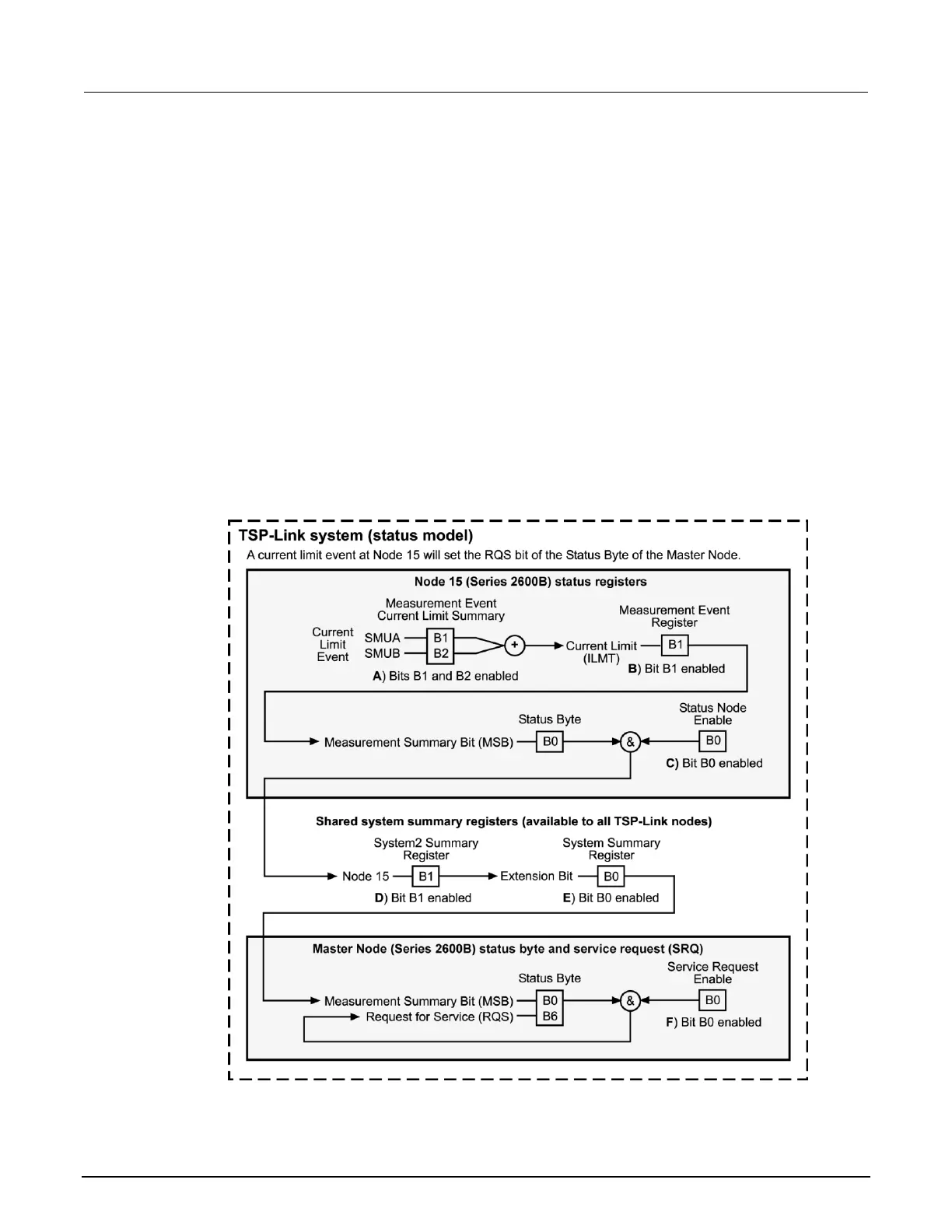

Figure 147: TSP-Link status model configuration example
