Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Power Plant
E4.08.04
Rev. 29
Page 259
71 -Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
Only the cable tie is permitted for connector adapter (of BPA filter)
attachment.
Do not tighten the BPA hose with too much force!
(6)
Attach the BPA branch on the connector
housing.
Use a cable tie [05]
Refer to Fig. 71 - 79.

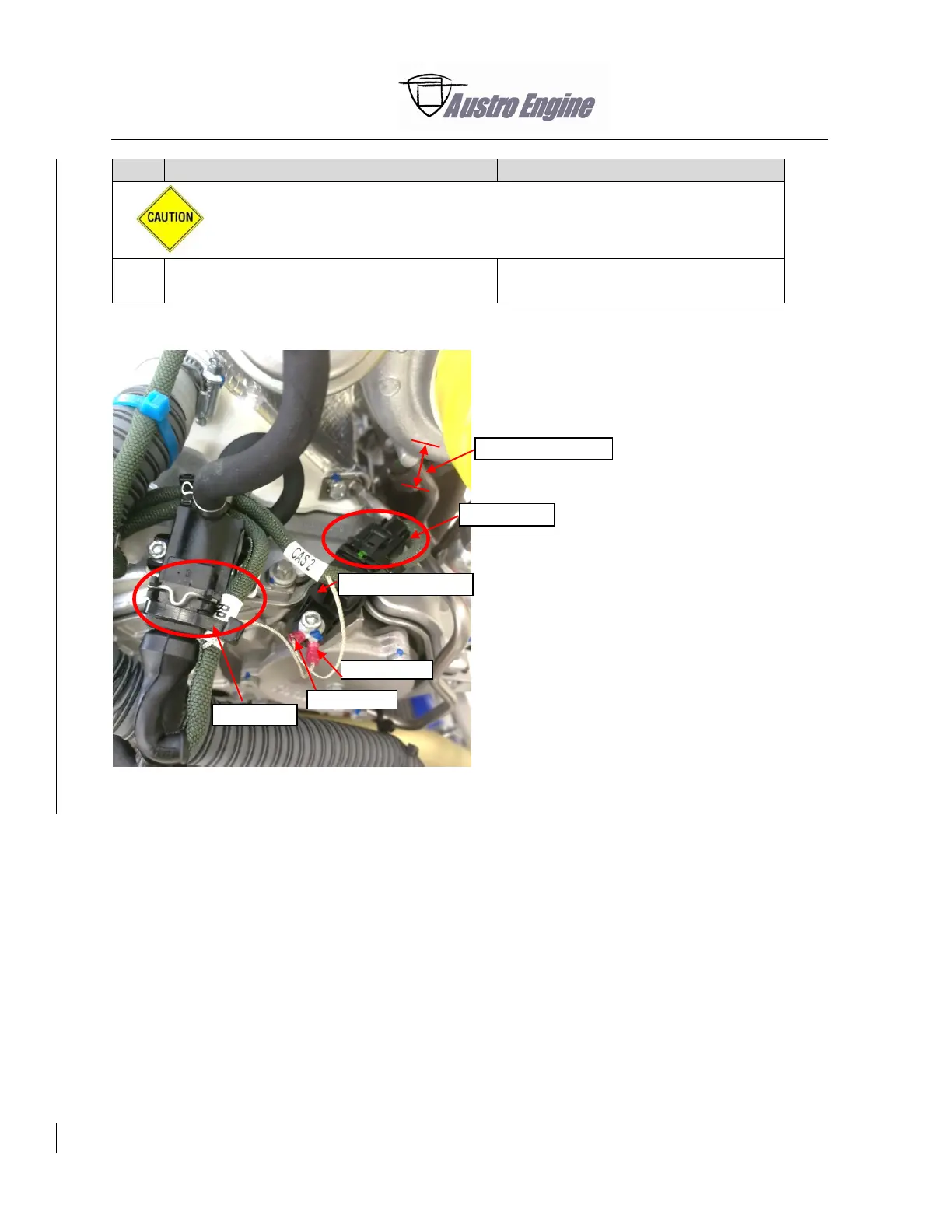

Fig. 71 - 78 CAS 2 and BPA pigtails installation
Pigtail CAS 2
Pigtail BPA
CAS 2 Branch
BPA Branch
CAS 2 mounting screw
min 25 mm distance
