E4 Series

Maintenance Manual

Power Plant

E4.08.04

Rev. 29

Page 287

71 -Maintenance Procedures

01-Jul-2020

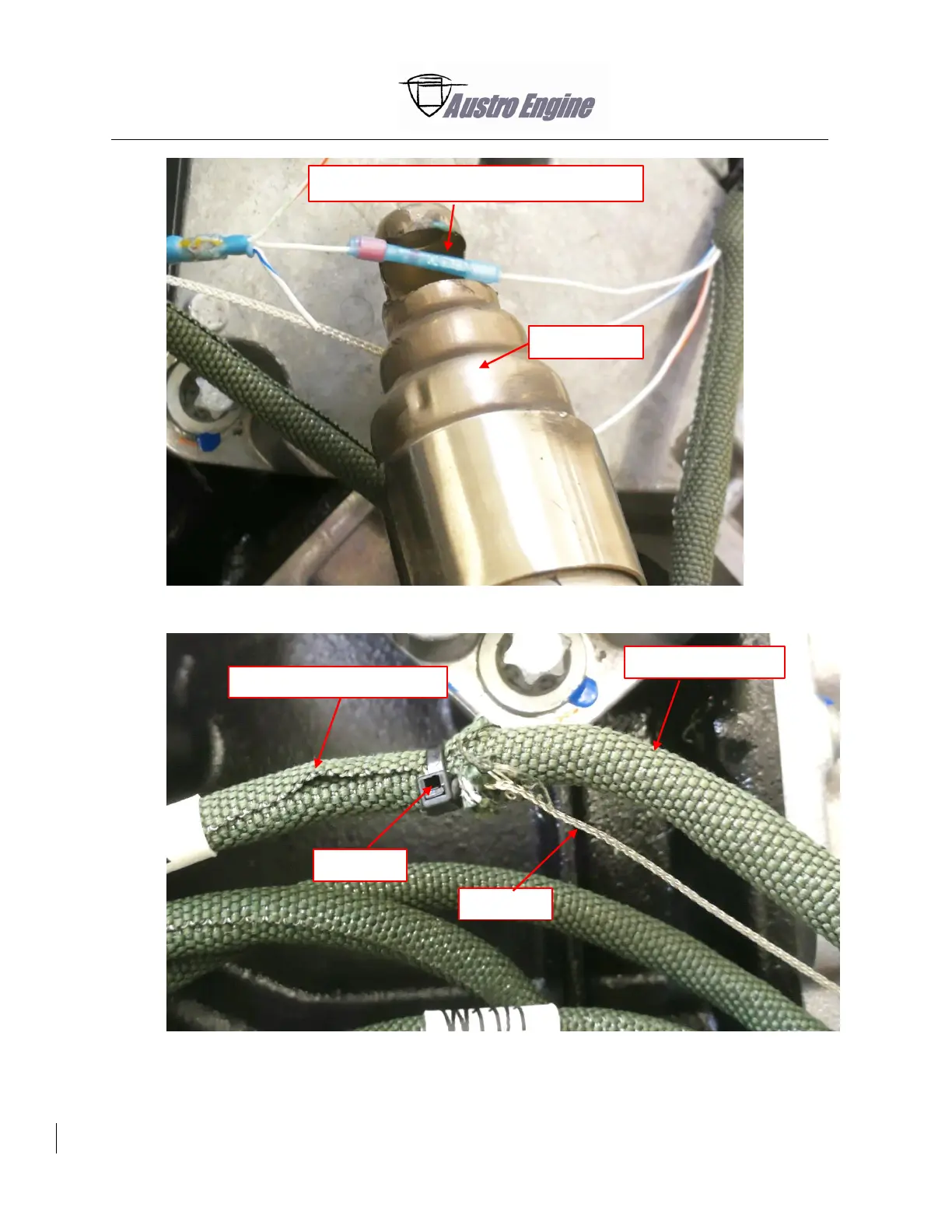

Fig. 71 - 103 Splice crimps sealing

Fig. 71 - 104 Roundit application

Isolation sleeve with covered splice crimp

Hot air gun

Roundit repair kit

Roundit engine harness

Cable tie

Pigtail
