E4 Series

Maintenance Manual

Engine Oil

System

Page 204

E4.08.04

Rev. 29

79-Maintenance Procedures

01-Jul-2020

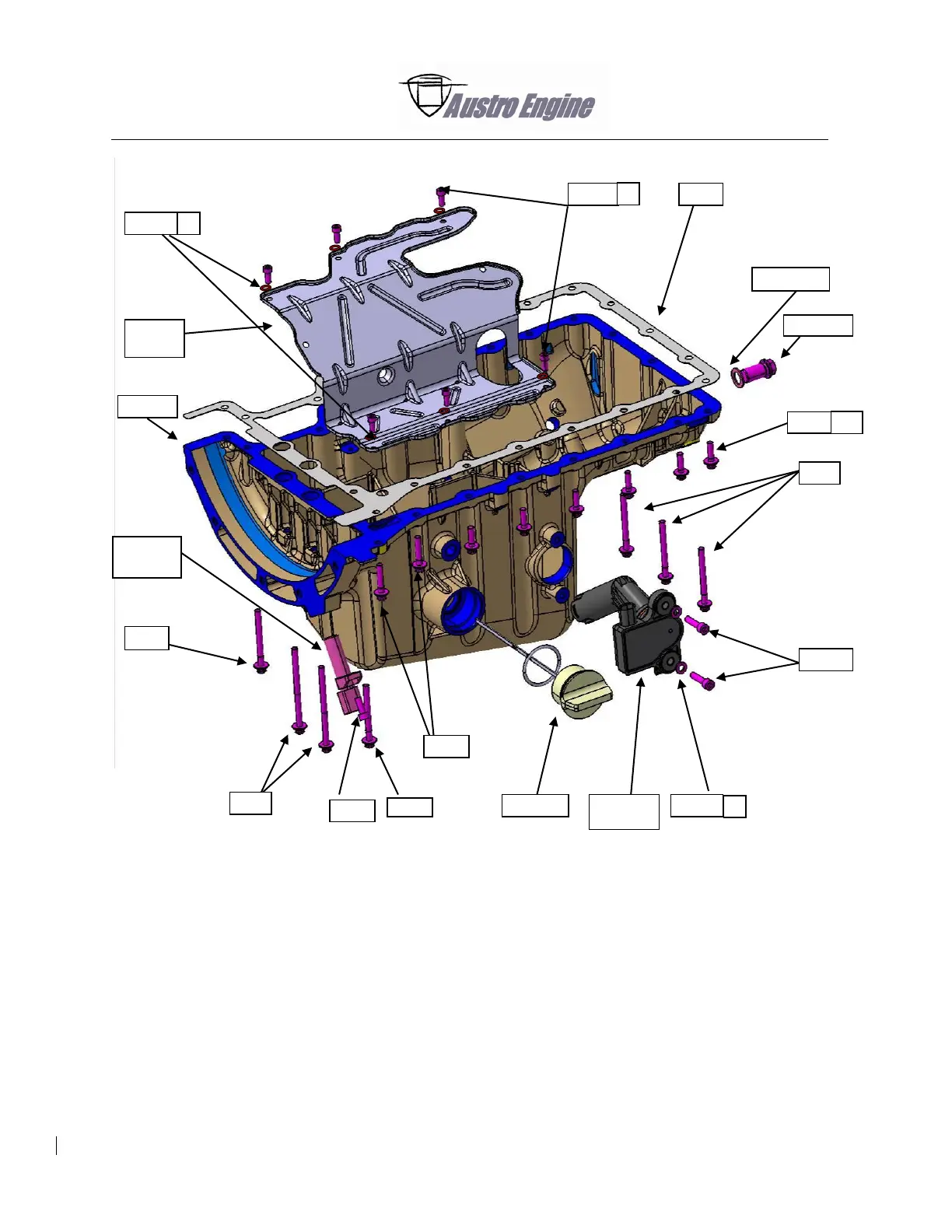

Fig. 79 - 2 Oil sump - exploaded view

Oil sump

Oil baffle

panel

Washer

Screw

Gasket

Sealing ring

Screw plug

Screw

14x

Screw

LU position

sensor

Screw

Oil dipstick

LU oil level

sensor

Washer

Screw
