E4 Series

Maintenance Manual

Engine Oil

System

Page 208

E4.08.04

Rev. 29

79-Maintenance Procedures

01-Jul-2020

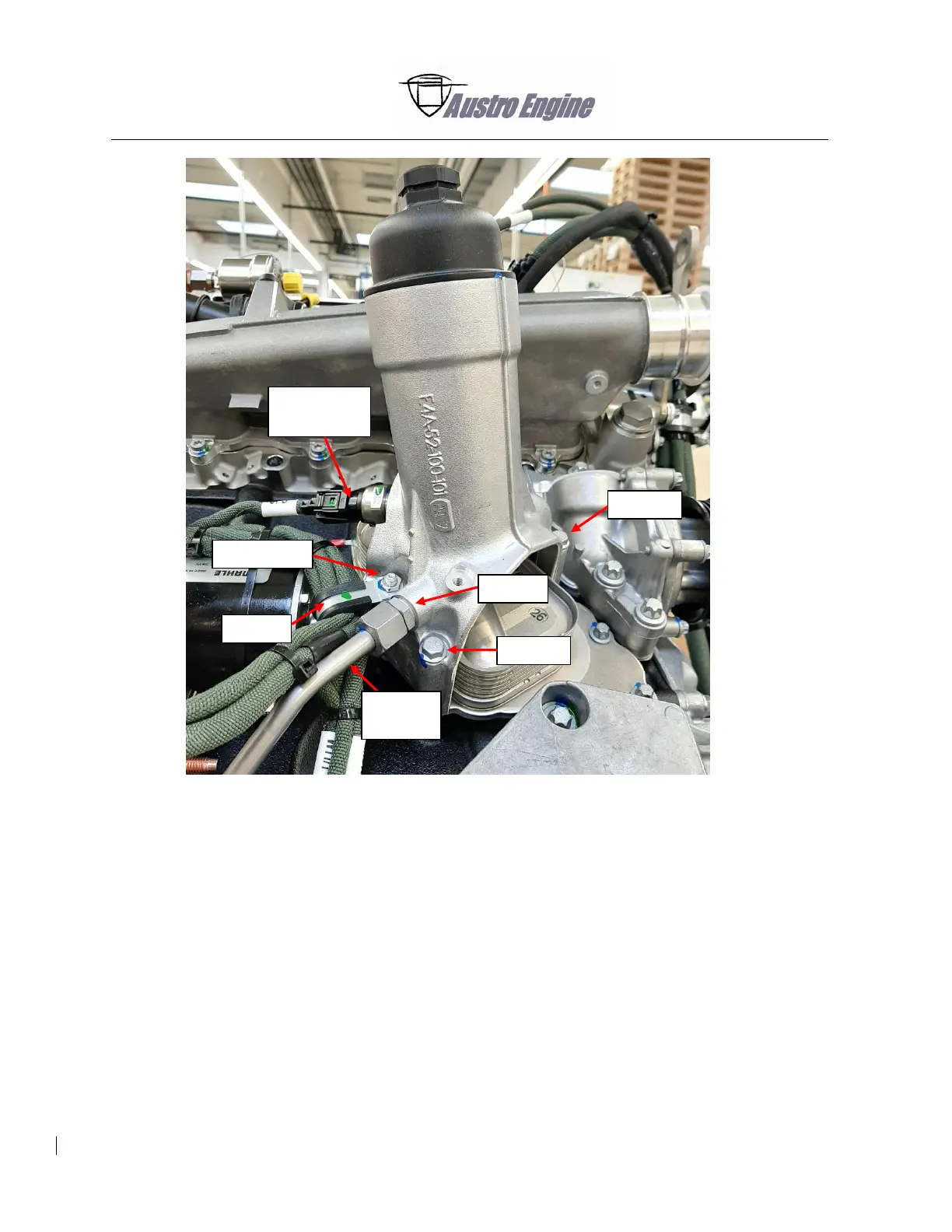

Fig. 79 - 6 Oil filter housing installation

Oil pressure

sensor

Stud bolt

clamp

Housing

drain line

fitting

screw
