Austro Engine E4 Series

To Next Page

To Previous Page

E4 Series

Maintenance Manual

Turbocharging

E4.08.04

Rev. 29

Page 213

81- Maintenance Procedures

01-Jul-2020

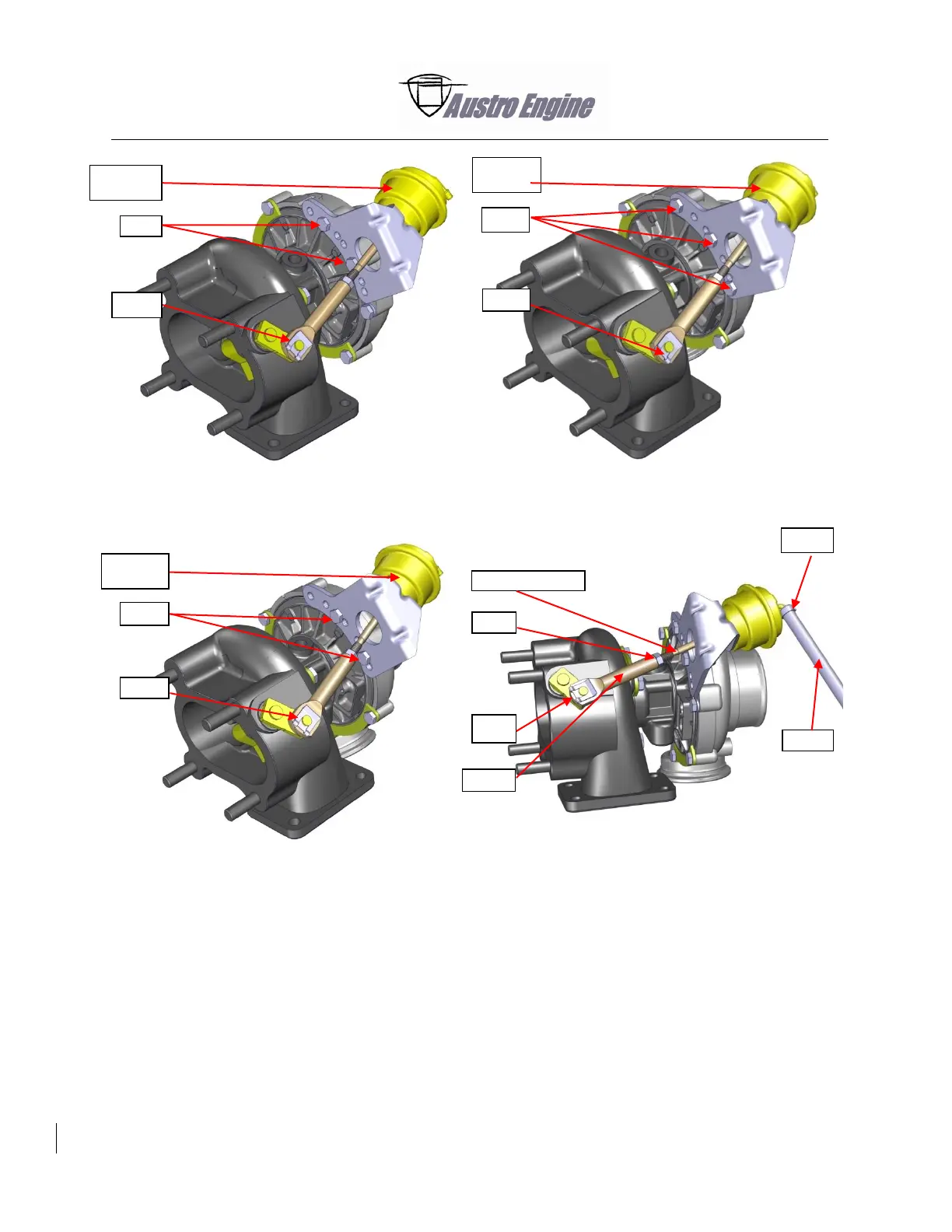

Fig. 81 - 15 Turbocharger engine

configuration “-A”

Fig. 81 - 16 Turbocharger engine

configuration “-B”

Fig. 81 - 17 Turbocharger engine

configuration “-C”

Fig. 81 - 18 Wastegate controller

installation

Wastegate

controller

Screw

Circlip

Wastegate

controller

Circlip

Wastegate

controller

Screw

Connection rod

Nut

Circlip

Rod eye

Hose

Clamp
