E4 Series
Maintenance Manual
Turbocharging
Page 212
E4.08.04
Rev. 29
81- Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(24)
Make sure that the installation position applies to
the engine configuration.
Refer to Fig. 81 - 15, Fig. 81 -
16 and Fig. 81 - 17.
When you apply Loctite, there must be no grease on the thread!
Apply only a thin film of Loctite!
(25)
Apply Loctite 243 onto the thread of the connection
rod, where the nut is countered.
Refer to Fig. 81 - 18.
Do not bend and twist the connection rod of the wastegate controller at any
time!
Refer to Fig. 81 - 13.
(26)
Tighten the rod eye by hand or with an applicable
tool.
Refer to Fig. 81 - 18.
(27)
Tighten the nut at the connection rod.
Torque 6 Nm.
(28)
Make sure that the rod eye is parallel to the
wastegate mechanism.
Refer to Fig. 81 - 19.
(29)
Remove the clamp and disconnect the hose of the
air pressure device.
(30)
Re-connect the hose to the port of the wastegate
controller and attach a new clamp.
Refer to Fig. 81 - 18.

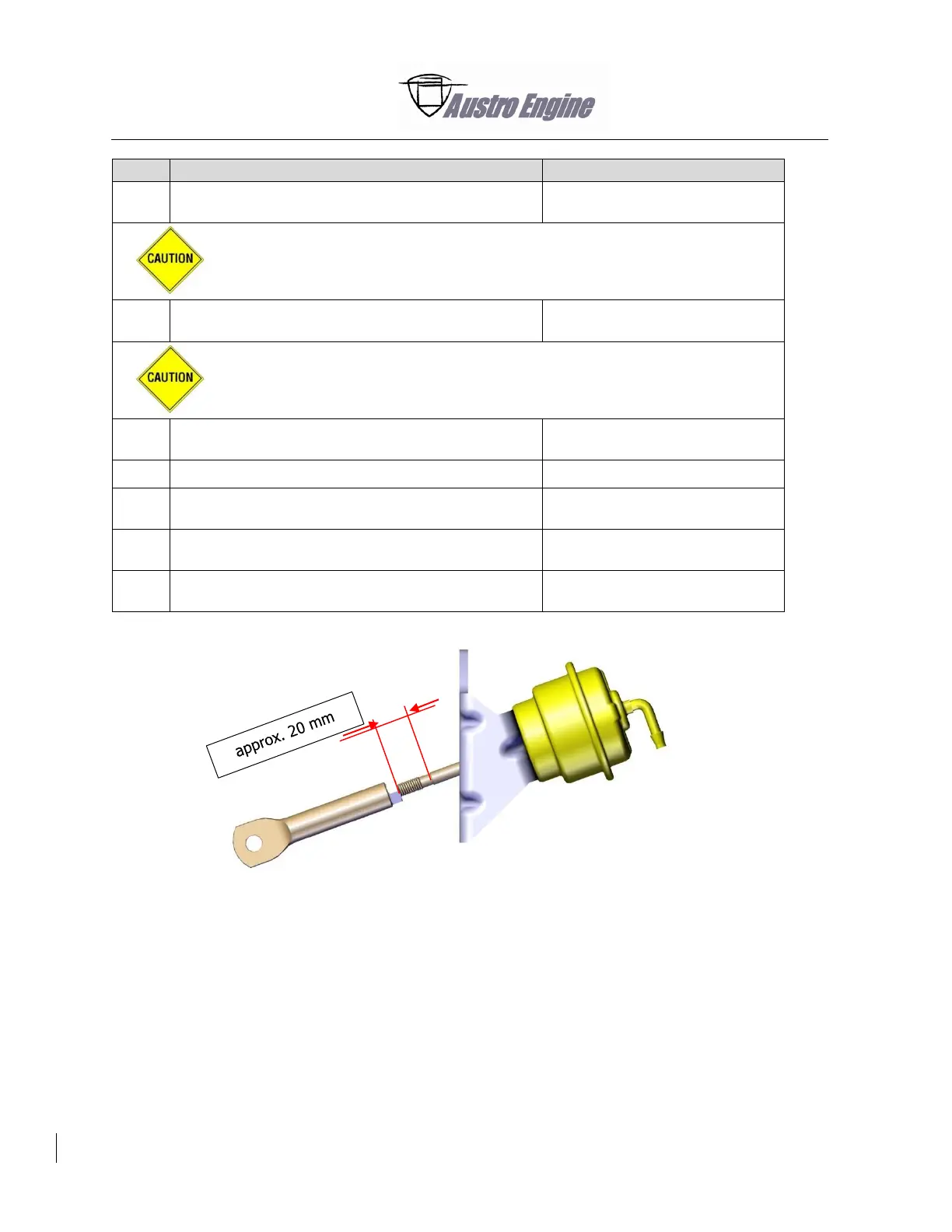

Fig. 81 - 14 Rod eye adjustment
