Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 256
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020
b. Engine carrier mounting LH side
The installation of a threaded insert for a damaged thread is only permitted for the
threads shown in the following figure.

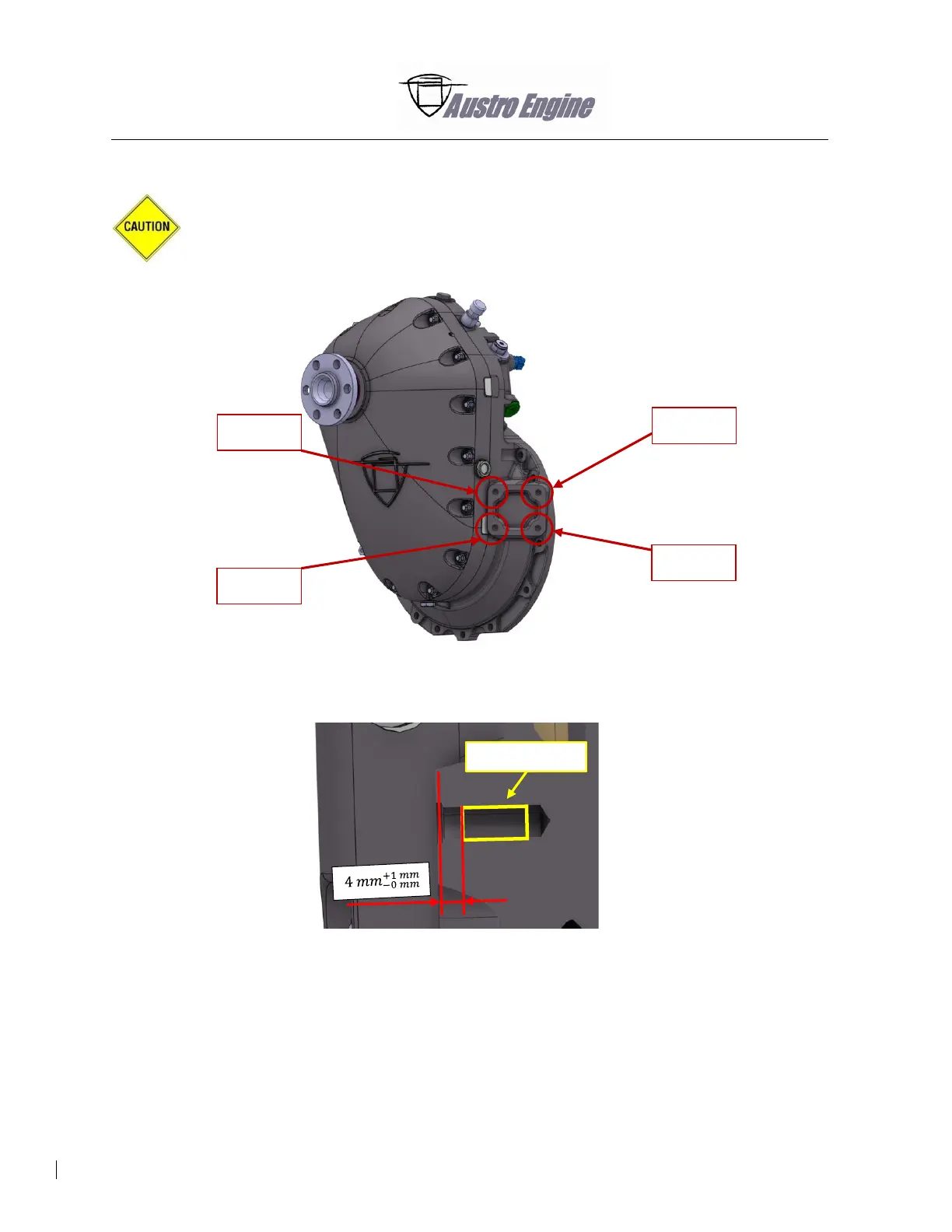

Fig. 85 - 77 Gearbox engine carrier mounting LH side
Fig. 85 - 78 Typical threaded insert (section view)
Snapsho t of E4A-70-000 -0 00 AA.1 - 28 .02 .201 7 13:50 :1 6
Sna psho t of E4A-70-000 -0 00 AA.1 - 28 .0 2.201 7 14 :00 :3 9
POS.8
POS.5
POS.7
POS.6
Threaded insert
