Refer to Fig. 85 - 93.
(14)
Install the air intake hoses.
Refer to the applicable Aircraft
Maintenance Manual.
(15)
Install the gearbox.
If the optional gearbox oil
cooler is installed.
Refer to Section 85-10-00 Paragraph
4.B.
(16)
Fill the engine with engine coolant.
Refer to the applicable Aircraft
Maintenance Manual.
(17)
Bleed the cooling system.
(18)
Do an engine ground run.
Refer to Section 71-00-01.
(19)
Examine the coolant system for leakage.

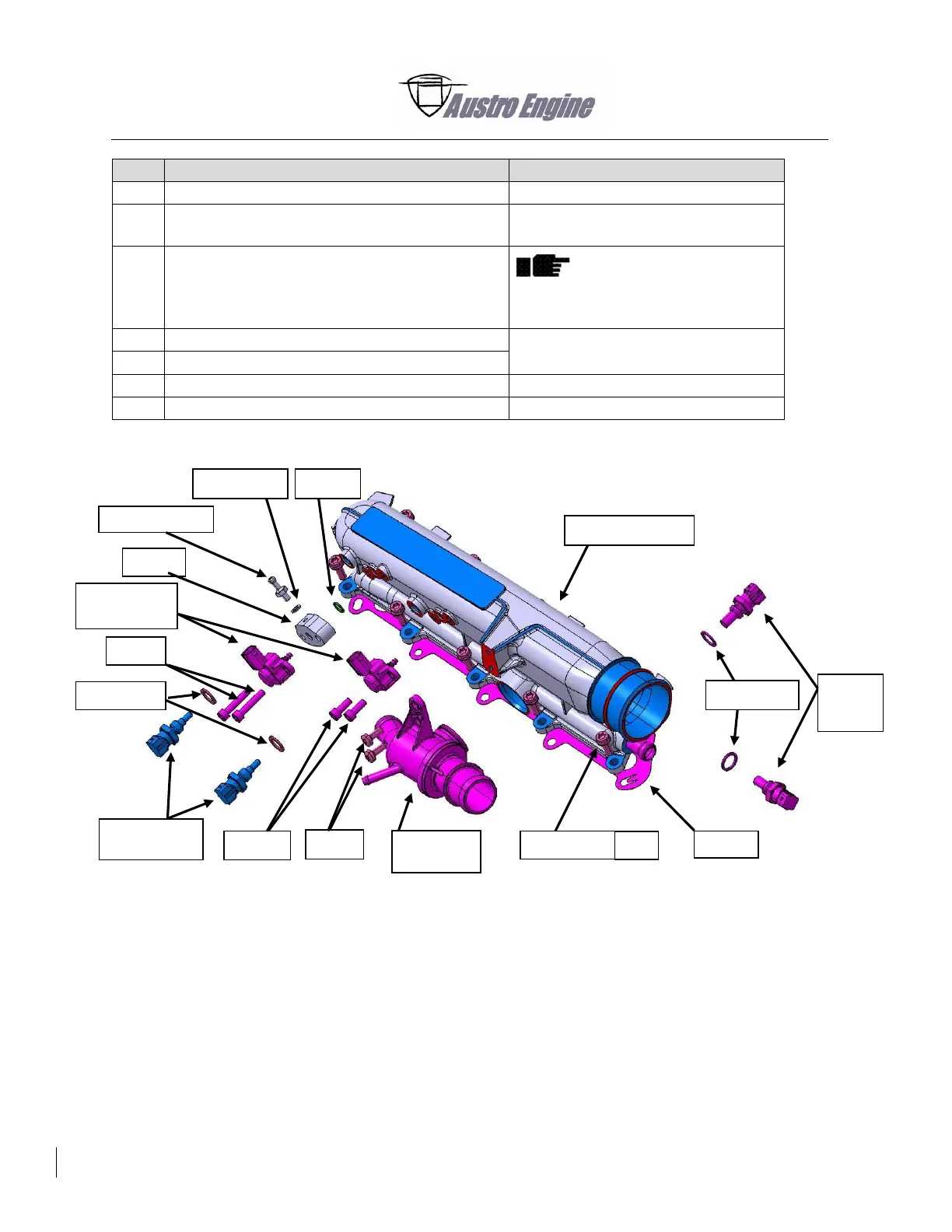

Fig. 85 - 90 Exploded view of Intake Air Manifold (Configuration A)
Screw
Screw
O-Ring
Hose connection
Sealing ring
Temp.
Sensor
(CTS)
Screw
Sealing ring
Sealing ring
Spacer
Temp. Sensor
(IAT)
Pressure
sensor (BPS)
Gasket
Collar screw
9x
Coolant
thermostat
Intake Air Manifold
