Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 339
85-Maintenance Procedures
01-Jul-2020

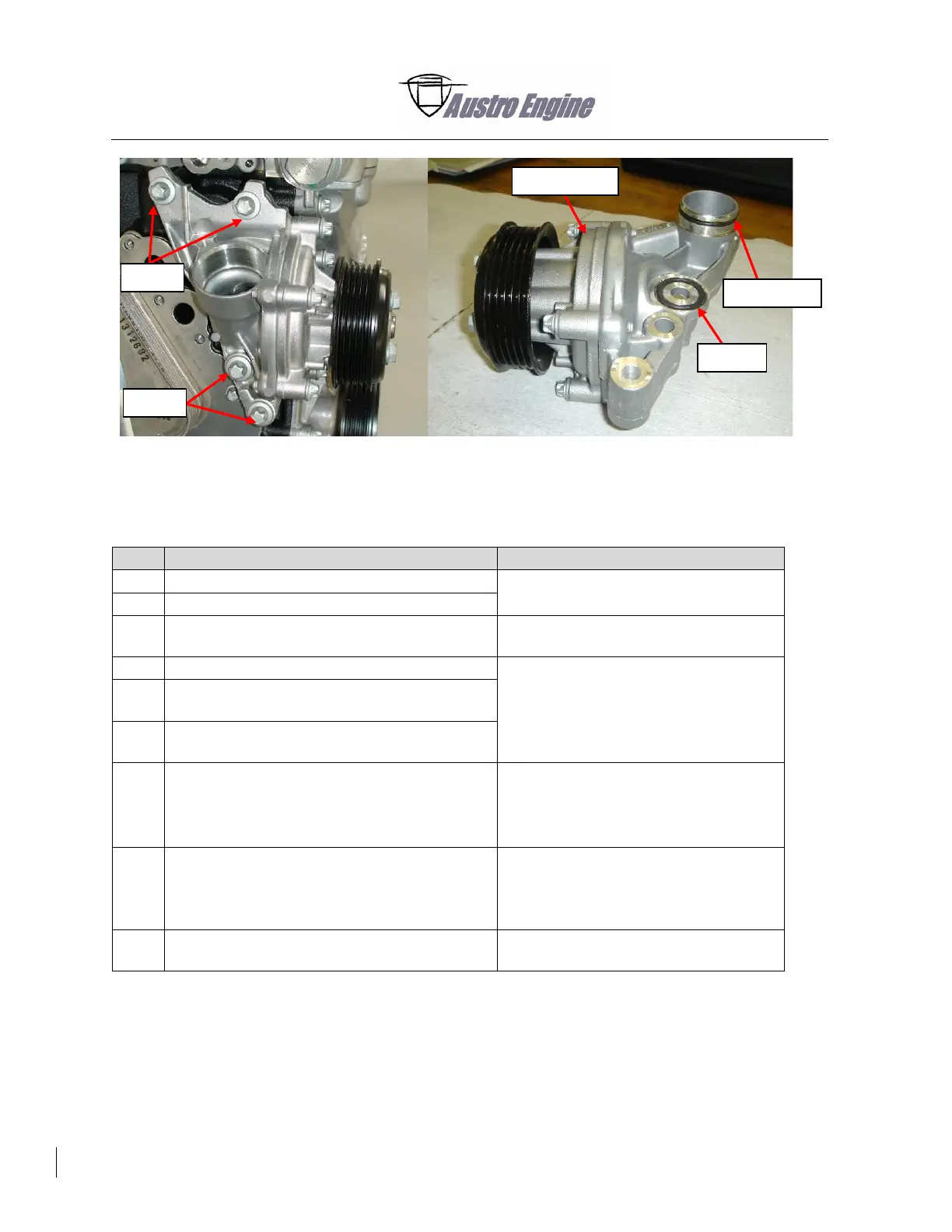

Fig. 85 - 158 Water Pump
Fig. 85 - 159 Water Pump
C. Remove the Water Pump Bearing Housing Assembly
Detail Steps/Work Items
Key Items/References
(1)
Drain the coolant.
Refer to the applicable Aircraft
Maintenance Manual.
(2)
Remove the coolant pipe.
(3)
Remove the V-Ribbed belt.
Refer to Section 85-40-00 Paragraph
1.A.
(4)
Remove the four screws from the belt pulley.
Refer to Fig. 85 - 160.
(5)
Remove the belt pulley from the water pump
bearing housing assembly.
(6)
Remove the five screws from the water pump
bearing housing assembly.
(7)
Remove the water pump bearing housing
assembly and the profile gasket.
Discard the gasket.
Discard the water pump bearing
housing assembly if you find leakage.
Refer to Fig. 85 - 160.
(8)
Examine the sealing surface of the water
pump housing for mechanical damages
(scratches, dents, cracks, etc.).
If you find any damage on the sealing
surface, replace the water pump.
For removal/installation instructions,
refer to Paragraph A and B.
(9)
Clean the sealing surface of the water pump
housing.
Sealing ring
O-Ring
Water pump
Screw
Screw
