Datalogic Magellan 3450VSi User Manual

Wall Mount
Product Reference Guide 5
Wall Mount
Attach the L-Bracket to the wall, securing it in the desired position with two
screws through the two holes in the back face of the L-Bracket as shown in Fig-
ure 5. It is recommended to use two pan he
ad (8.2mm or 5/16” maximum head
diameter) #8 screw with a thread profile that suits the mounting surface mate-
rial in the wall.
Countertop Mount
If using the L-Bracket alone for countertop installation, secure the bracket in
place using two screws through the bottom face of the bracket (see Figure 5). It
is recommended to use two pan head (8.2mm or 5/
16” maximum head diame-
ter) #8 screw with a thread profile that suits
the mounting surface material in
the countertop.
CAUTION
Do not use a countersink type of screw head. Damage will occur
from use of a countersunk screw head in the plastic screw bosses

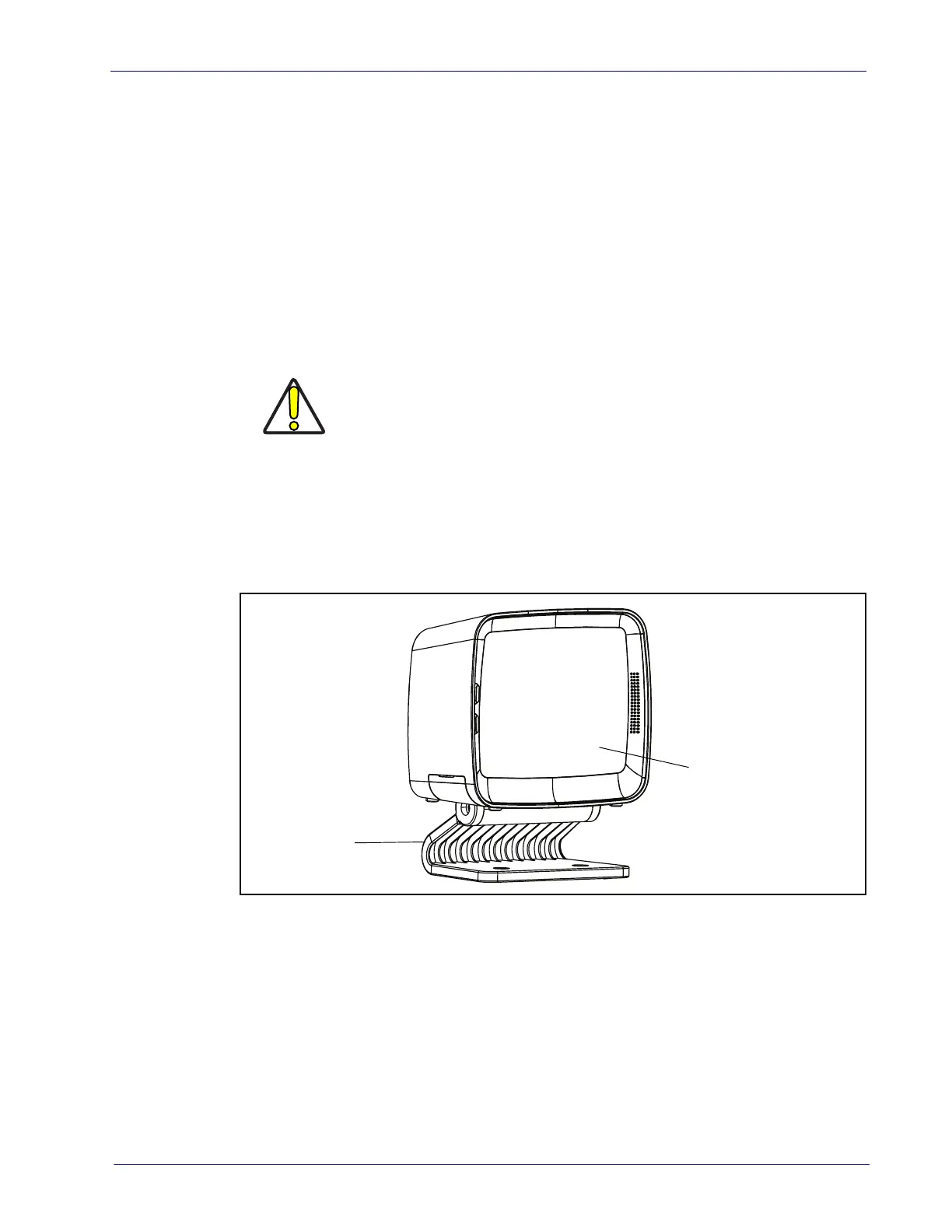

Adjustable Riser
The Adjustable Riser may be attached as shown.
Figure 6. Using the Adjustable Riser
Scanner
Riser

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
