Enter/Exit Programming Mode Codabar Stitching
228 Magellan™ 3450VSi

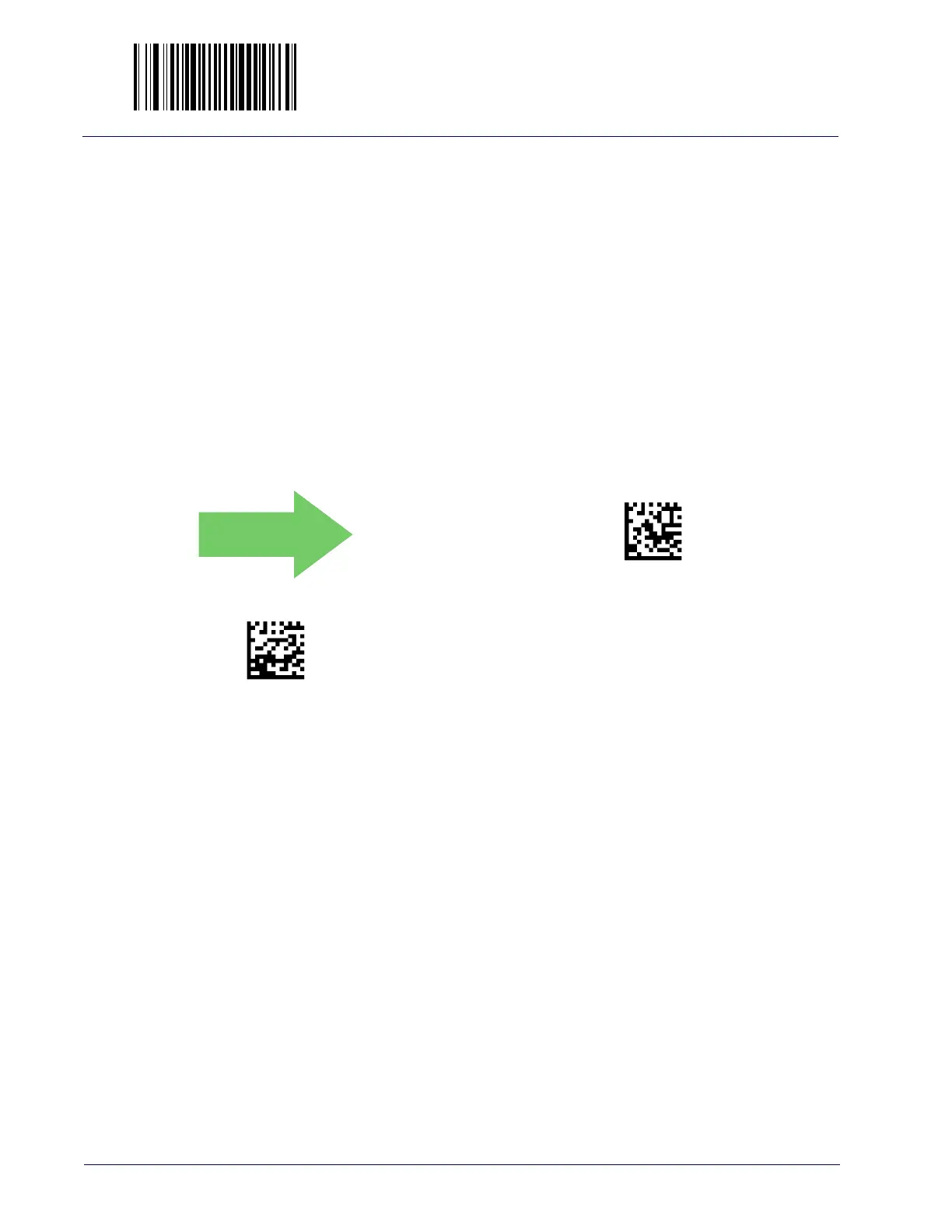

Codabar Stitching
Enables/disables stitching for Codabar labels. When parts of a Codabar bar
code are presented to the scanner with this feature enabled, the bar code parts
will be assembled by the scanner’s software, and the data will be decoded if all
bar code proofing requirements are met.
To set this feature:
1. Scan the ENTER/EXIT Prog
ramming Mode bar code.
2. Scan your selection from the bar codes below. You’ll need to cover any
unused bar codes on this and
the facing page to ensure that the scanner
reads only the bar code you intend to scan.
3. Complete the programming sequence
by scanning the ENTER/EXIT Pro-
gramming Mode bar code.
DEFAULT
06AD00(CR)
Codabar Stitching = Disable
06AD01(CR)
Codabar Stitching = Enable

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
