Datalogic Magellan 3450VSi User Manual

Mount Installation
4 Magellan™ 3450VSi

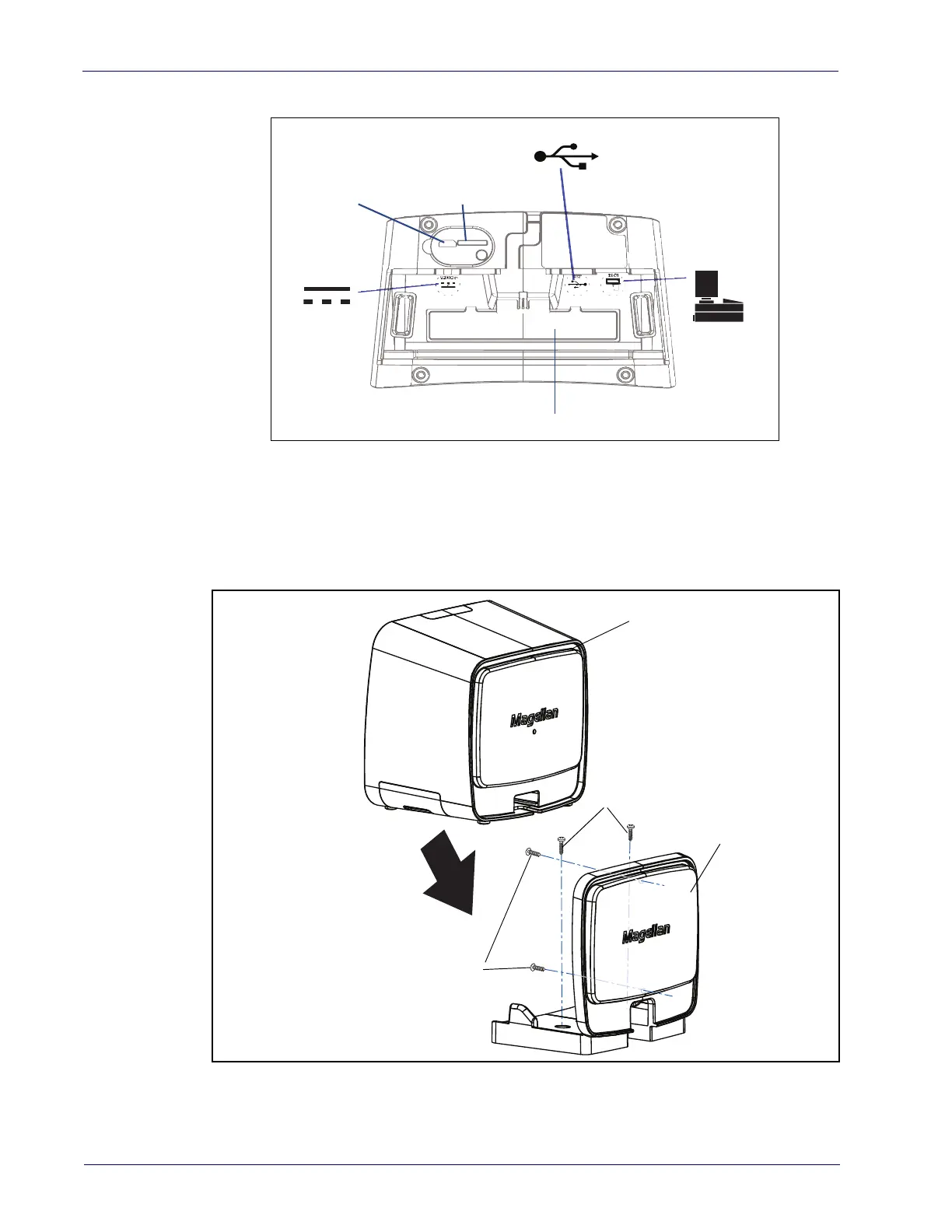

Figure 4. Scanner Features - Bottom View
USB Aux Port
Power
Host Port
EAS Wire Cavity
USB Micro-B
MicroSD Card
Mount Installation
Options for mounting the scanner to a wall or countertop include an L-Bracket
or an adjustable riser. Figure 5 shows the scanner being seated in
an L-Bracket.
Figure 5. L-Bracket Mount
Scanner
L-Bracket
Wall Mounting Screws
Countertop Mounting Screws
Move the scan-
ner toward the
bracket in a
diagonal motion
to seat it.

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
