Datalogic Magellan 3450VSi User Manual

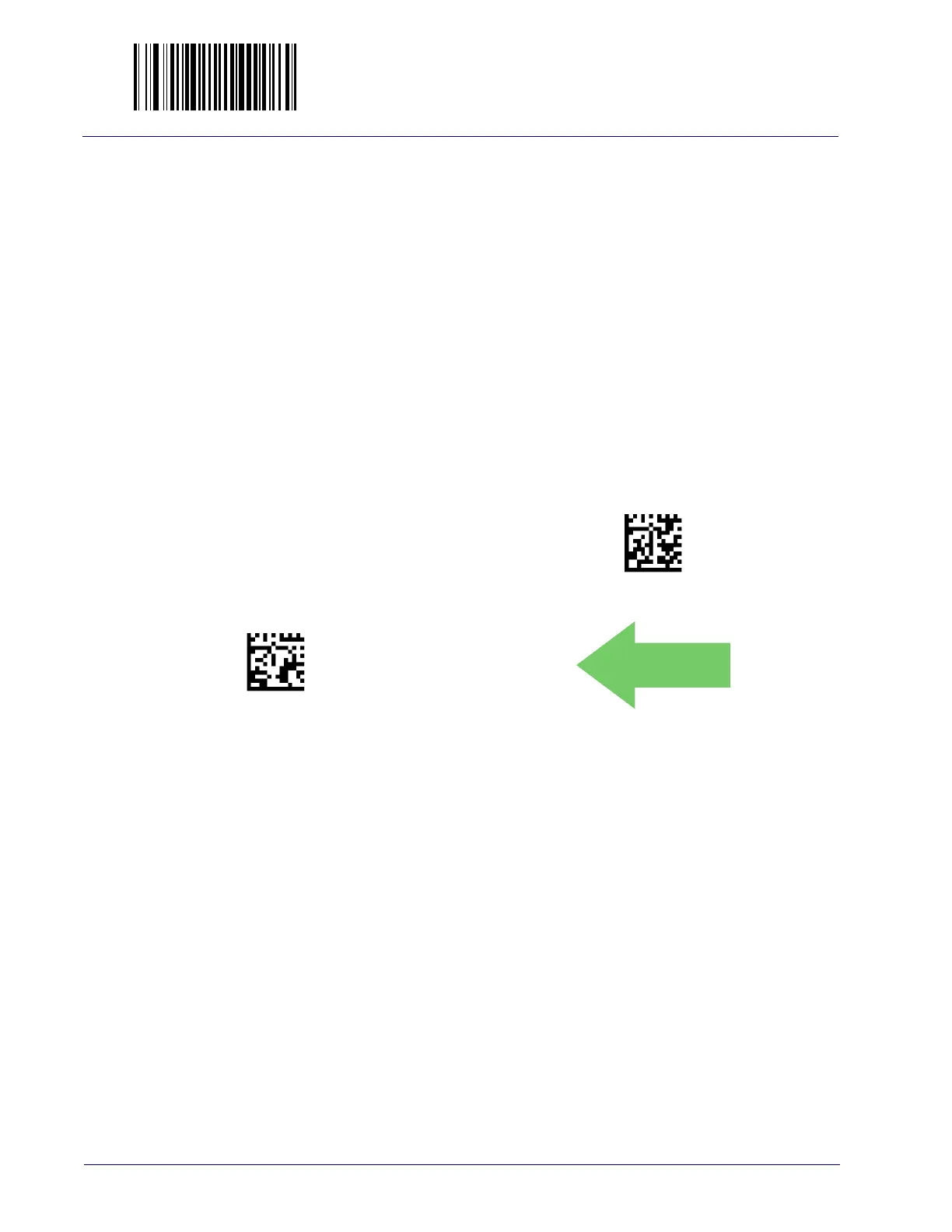

Enter/Exit Programming Mode PDF 417 Enable
262 Magellan™ 3450VSi
PDF 417
PDF 417 Enable
Enables the processing of PDF417 labels.
To set this feature:
1. Scan the Enter/Exit Programming
Mode bar code.
2. Scan either the enable or disable bar code below. You’
ll need to cover any
unused bar codes on this and the facing page to ensure that the scanner
reads only the bar code you intend to scan.
3. Complete the programming sequence by
scanning the Enter/Exit Pro-
gramming Mode bar code.
05A100(CR)
PDF 417 = Disable
05A101(CR)
PDF 417 = Enable
DEFAULT

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
