Datalogic Magellan 3450VSi User Manual

Codabar Start Stop Character Set Enter/Exit Programming Mode
Product Reference Guide 219

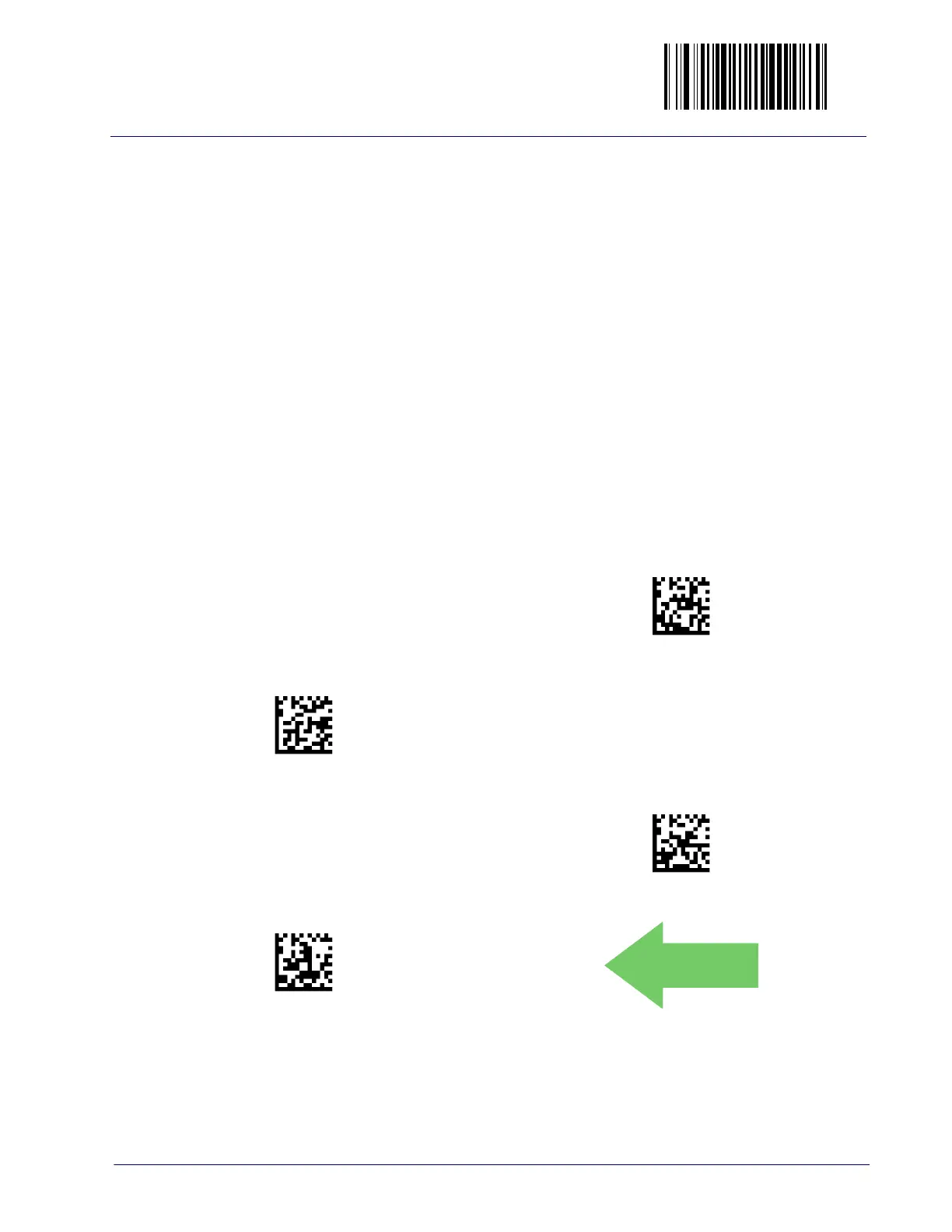

Codabar Start Stop Character Set
This feature specifies the format of transmitted Codabar start/stop characters.
Options are:
• ABCD/TN* E
• ABCD/ABCD
•abcd/tn* e
•abcd/abcd
To set this feature:
1. Scan the ENTER/EXIT Prog
ramming Mode bar code.
2. Scan the bar code below or from the following page representing the
des
ired option. You’ll need to cover any unused bar codes and facing
pages to ensure that the scanner reads only the bar code you intend to
scan.
3. Complete the programming sequence
by scanning the ENTER/EXIT Pro-
gramming Mode bar code.
022E00(CR)
Codabar Start Stop Character Set = ABCD/TN* E
022E01(CR)
Codabar Start Stop Character Set = ABCD/ABCD
022E02(CR)
Codabar Start Stop Character Set = abcd/tn* e
022E03(CR)
Codabar Start Stop Character Set = abcd/abcd
DEFAULT

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
