Datalogic Magellan 3450VSi User Manual

Length Control
Product Reference Guide 283

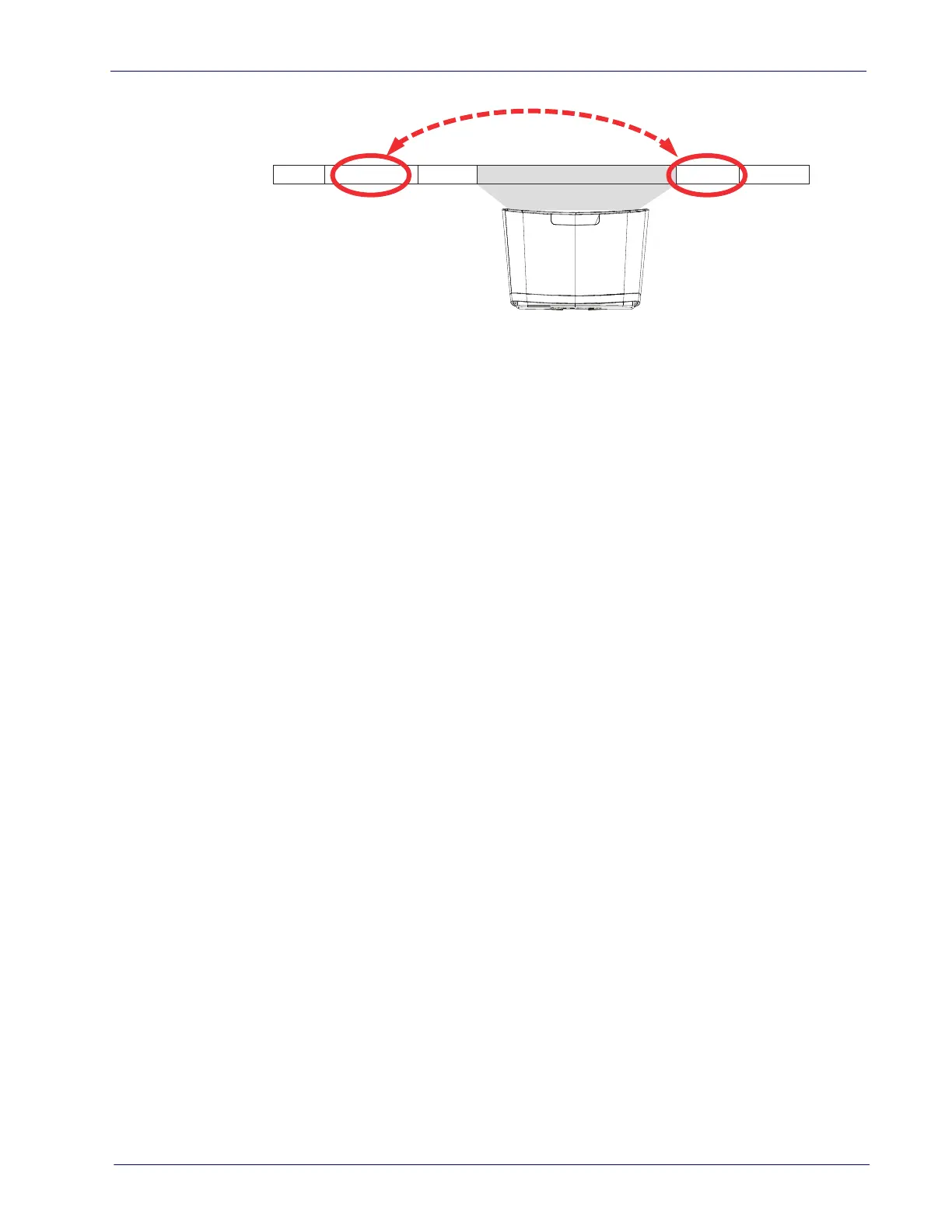

Figure 10. Label ID Position
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
Options
Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a bar code if the label length falls in the range of the configu-
rable minimum and maximum le
ngth.
Configuring Fixed Length Decoding:
1. Scan the Enter/Exit Progr
amming Mode bar code.
2. Scan the Fixed Length Decoding bar code for the
desired symbology.
3. Scan the Enter/Exit Progr
amming Mode bar code.
4. Set Length 1 to the first fixed leng
th by following the Length 1, Length 2
Programming Instructions below.
5. Set Length 2 to the second fixed length (or to ‘00’ if there is only one fixed
le
ngth) by following the Length 1, Length 2 Programming Instructions
below.
Configuring Variable Length Decoding:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the Variable Length Decoding
bar code for the desired symbology.
3. Scan the Enter/Exit Progr
amming Mode bar code.
4. Set Length 1 to the first varia
ble length by following the Length 1, Length
2 Programming Instructions below.
5. Set Length 2 to the second variable length by following the Length 1,
Length 2 Programming Instructions below.

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
