Datalogic Magellan 3450VSi User Manual

Enter/Exit Programming Mode Price Weight Check
152 Magellan™ 3450VSi

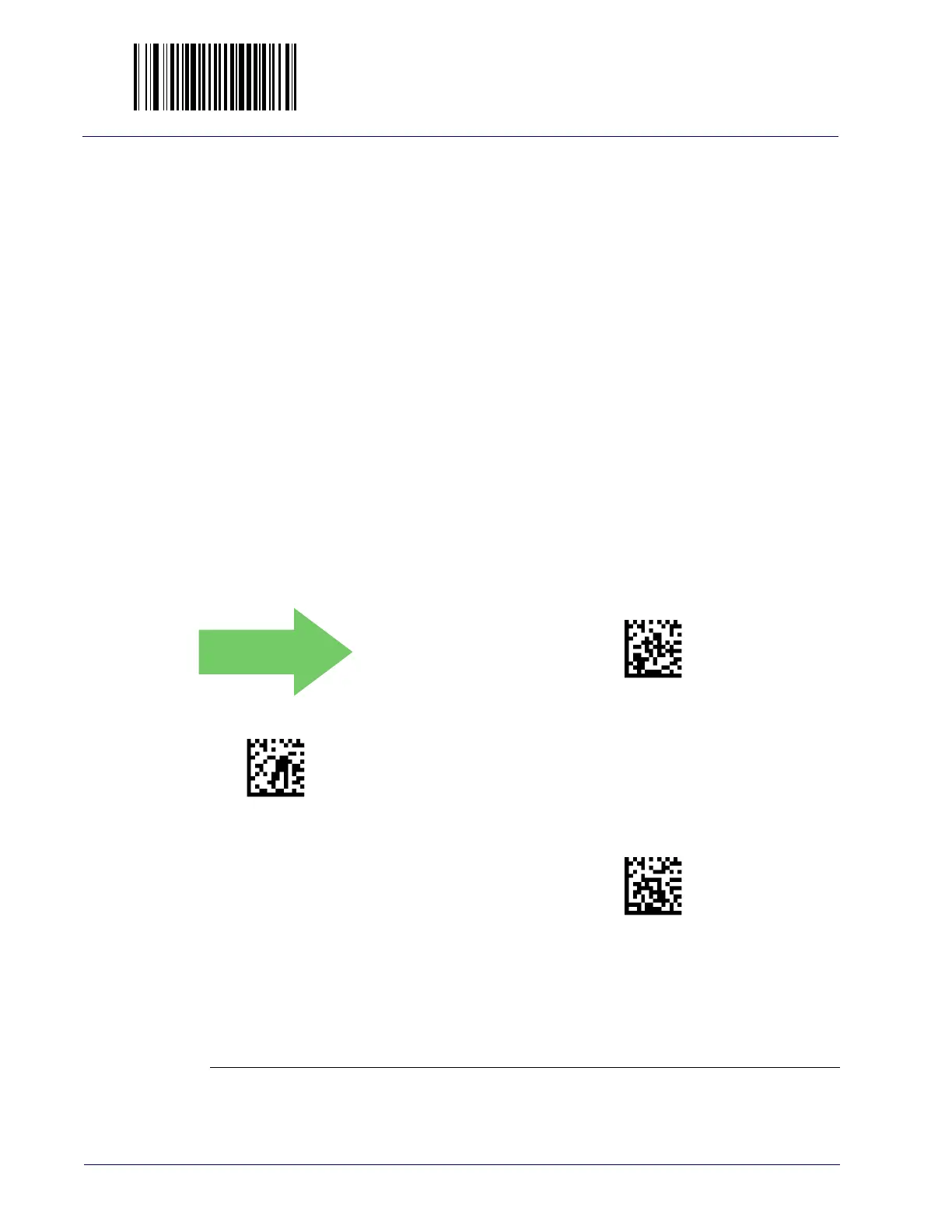

Price Weight Check
Enables/disables calculation and verification of price/weight check digits.
Applies to all UPC-A and EAN/JAN-13 labels with eligible
1
Number System/First
Character digits.
Options are:
•Disable
• 4-digit price/weight
• 5-digit price/weight
• 4-digit European price/weight
• 5-digit European price/weight
To set this feature:
1. Scan the Enter/Exit Programming
Mode bar code.
2. Scan the bar code representing the des
ired option below or on the follow-
ing pages. You’ll need to cover any unused bar codes on facing pages to
en
sure that the scanner reads only the bar code you intend to scan.
3. Complete the programming sequence by
scanning the Enter/Exit Pro-
gramming Mode bar code.
DEFAULT
005C00(CR)
Price Weight Check = Disable
005C01(CR)
Price Weight Check = 4-digit price/weight
005C02(CR)
Price Weight Check = 5-digit price/weight
1. Price Weight Check generally applies to UPC-A labels with a Number System Digit
of 2 and EAN/JAN-13 labels with a First Character of 2. There are a total of six flag
digits corresponding to the six types. Checking applies depending upon which type
is enabled.

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
