Datalogic Magellan 3450VSi User Manual

Enter/Exit Programming Mode UPC/EAN Composites
164 Magellan™ 3450VSi
UPC/EAN Composites
Enables/Disables Composites for the UPC/EAN families of labels.
Options are:
To set this feature:

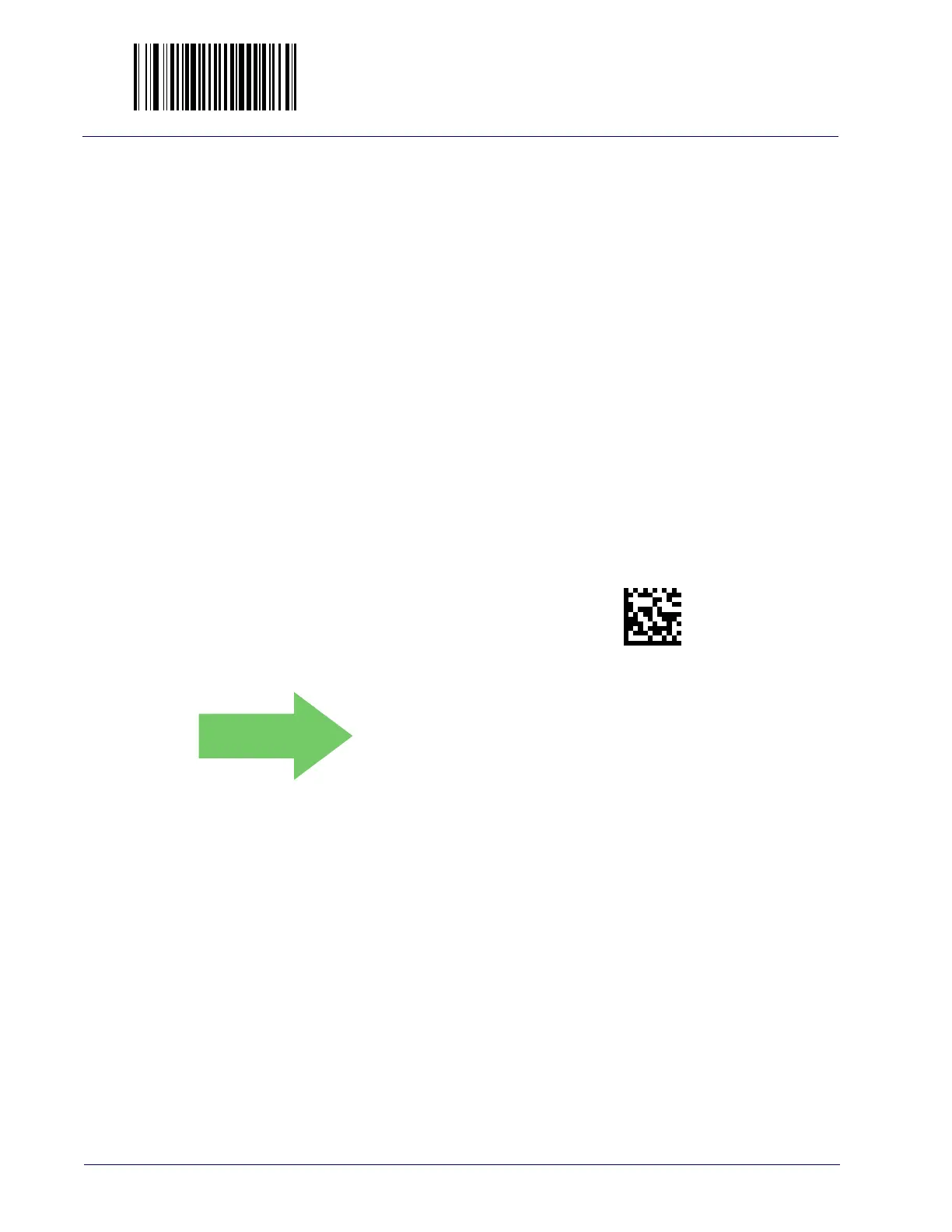

1. Scan the Enter/Exit Programming
Mode bar code.
2. Scan the bar code below. You’ll need to cover any unused bar
codes on
this and the facing page to ensure that the scanner reads only the bar code
you intend to scan.
3. Scan the appropriate digits from the Alpha-Numeric Keypad on page 295
that represent the desired number. The selectable range is 0-15 resets.
Pad all single and double dig
it numbers with leading zeroes to yield a two-
digit entry (00-15).
4. Complete the programming sequence by
scanning the Enter/Exit Pro-
gramming Mode bar code.
02FE(CR)
SetUPC/EAN Composites
DEFAULT
Default setting for this feature is:
00 - Disabled

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
