Datalogic Magellan 3450VSi User Manual

PDF 417 Length Control Enter/Exit Programming Mode
Product Reference Guide 263
PDF 417 Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a ar code if the label length falls in the range of the configurable
m
inimum and maximum length.
Configuring Fixed Length Decoding:
1. Scan the ENTER/EXIT Prog
ramming Mode bar code.
2. Scan the Fixed Length
Decoding bar code.
3. Scan the ENTER/EXIT Prog
ramming Mode bar code.
4. Set Length 1 to the first fixed length using the PDF 417 Length 1, Length 2
Programming Instructions on page 264 that follow this page.
5. Set Length 2 to the second fixed length (or t
o ‘0000’ if there is only one
fixed length) using the PDF 417 Length 1, Length 2 Programming Instruc-
tions on page 264.
Configuring Variable Length Decoding:
1. Scan the ENTER/EXIT Programming Mode bar code.
2. Scan the Variable Length Decoding bar code.
3. Scan the ENTER/EXIT Prog
ramming Mode bar code.
4. Set Length 1 to the minimum length using the PDF 417 Length 1, Length 2
Programming Instructions on page 264 that follow this page.
5. Set Length 2 to the maximum length using the PDF 417 Length 1, Length 2
Programming Instructions on page 264.

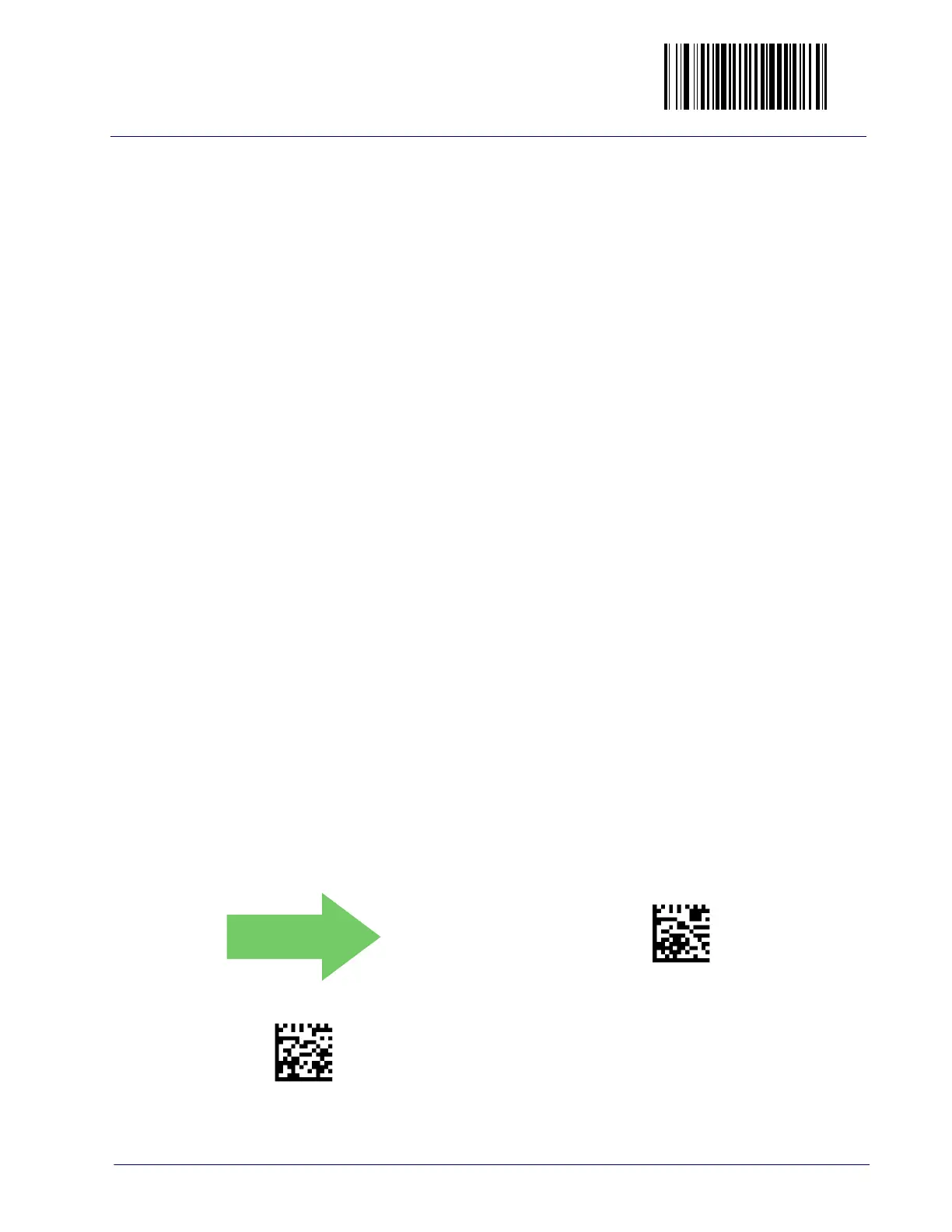

DEFAULT
05A300(CR)
PDF 417 Length Control = Variable Length
05A301(CR)
PDF 417 Length Control = Fixed Length

Datalogic Magellan 3450VSi Specifications

General

Standard interfaces	RS-232
Connectivity technology	Wired
Type	Fixed bar code reader
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	39000000 reads/s
Yaw reading angle	-75 - 75 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	100-240 V
Input frequency	50-60 Hz
Power source type	AC
Power consumption (standby)	2.6 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP52
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	94 mm
Width	152 mm
Height	137 mm
Weight	600 g
