E-mail/iFax Settings
327
System Settings
11
Secondary Server
Make the secondary server (server used when the primary server is not available)
settings of the directory server.

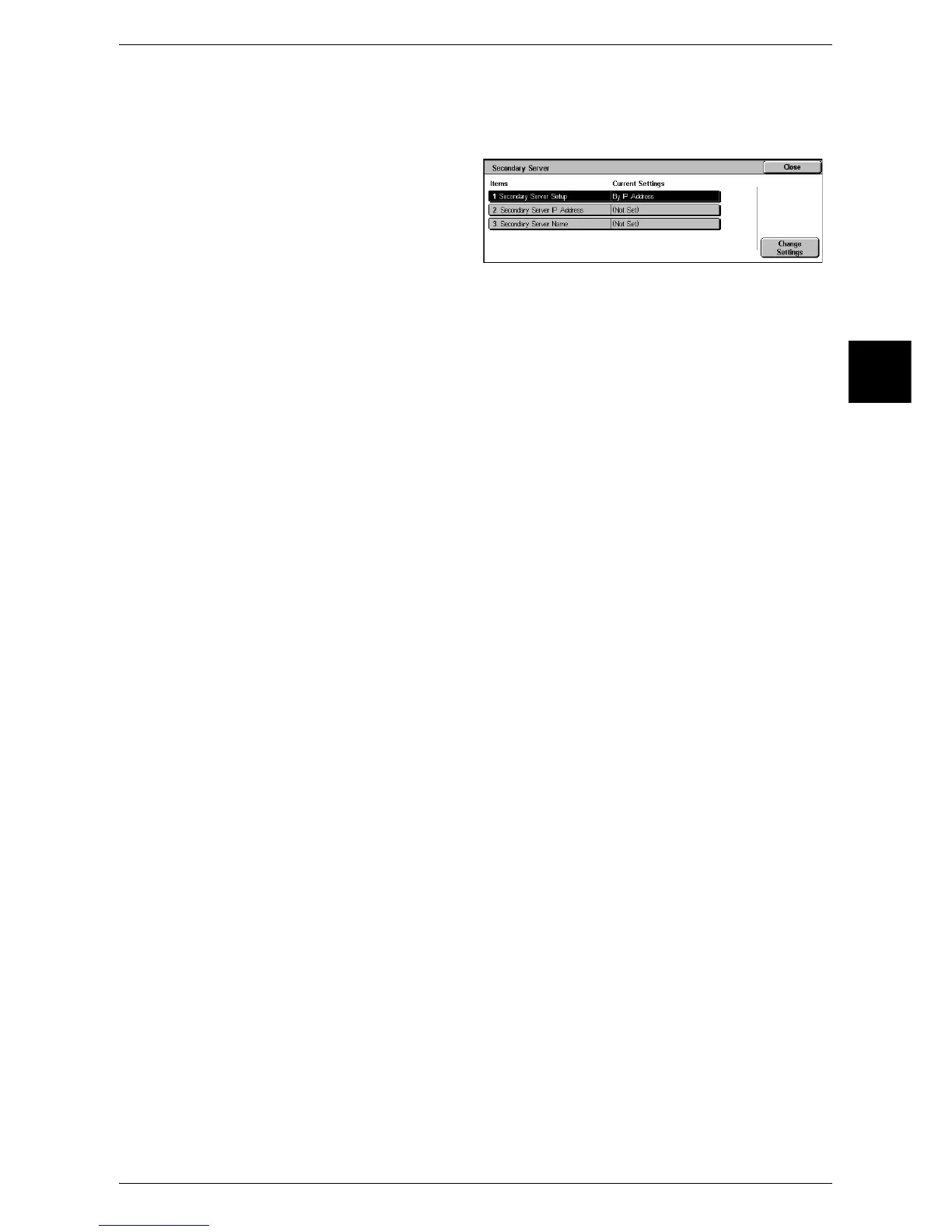

1 Select [Secondary Server].
2 Select the item to be set, and
select [Change Settings].
3 Set the setting value.
îš„Secondary Server Setup
Select the secondary server specification method from [By IP Address] and [By Server
Name].
îš„Secondary Server IP Address
Set the secondary server IP address, using values from 0 to 255.
Note • You can set this item when [Secondary Server Setup] is [By IP Address].
• 224.XXX.XXX.XXX to 255.XXX.XXX.XXX and 127.XXX.XXX.XXX cannot be set.
îš„Secondary Server Name
Set the server name for the secondary server. 64 characters are allowed.
Note • You can set this item when [Secondary Server Setup] is [By Server Name].
Secondary Server Port Number
Set the directory server (secondary server) port number in the range from in the range
from 1 to 65535.
Login Name
Set the login name for access to the directory server. However, set this item only when
authentication is required for the directory service. Do not make the setting when
authentication is not required.
When setting the login name, you can enter up to 25 characters.
Password
Set a password for access to the directory server. However, set this item only when
authentication is required for the directory service. Do not make the setting when
authentication is not required.
When setting the password, you can enter up to 32 characters.
Search Root Entry DN
Enter the search root character string with up to 255 characters.
Scope of Search from Root Entry
Select the search range from the search root.
îš„Root entry only
Searches the root level only.
îš„One level below root entry only
Searches from the root, as far as one level below.
To Next Page
