Machine Components
33
Product Overview
2

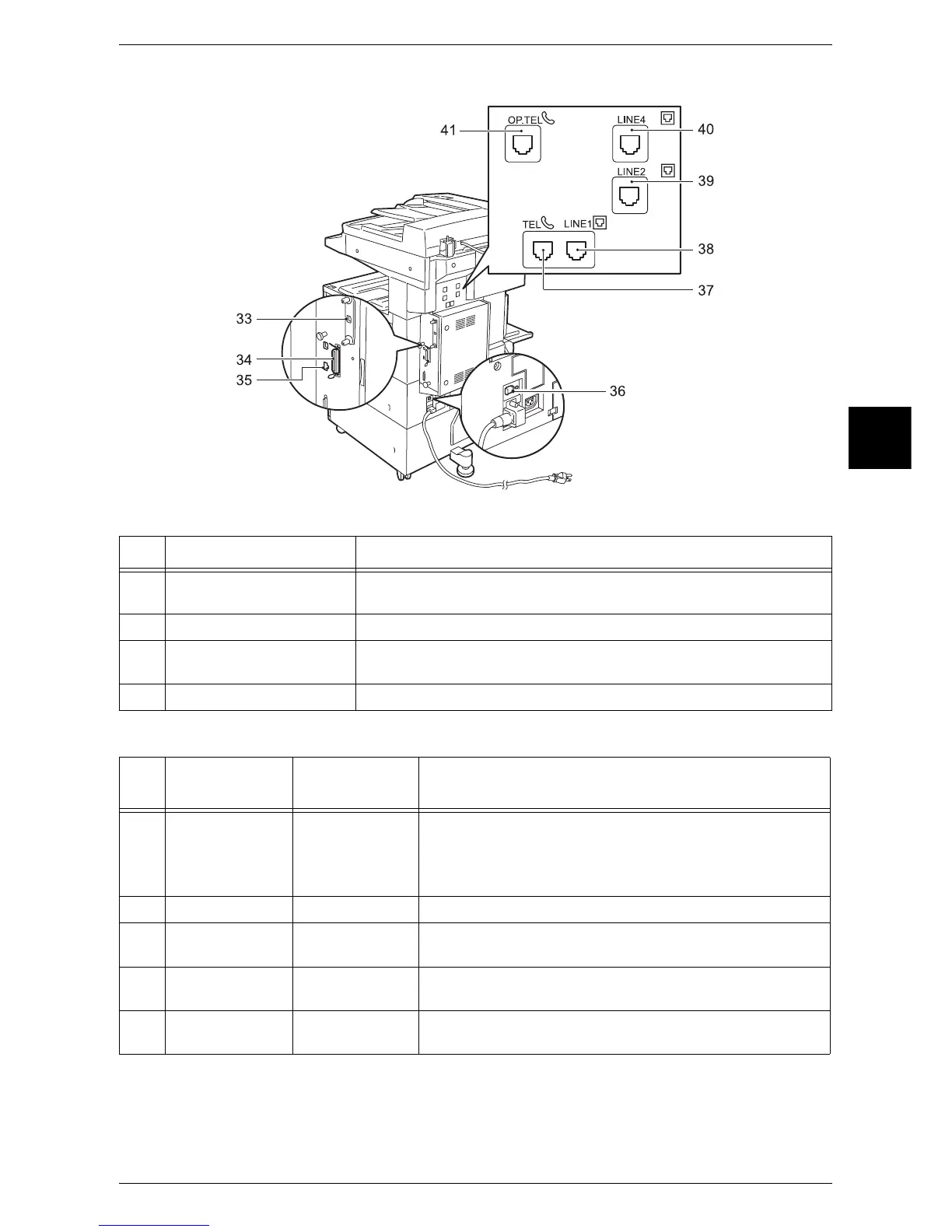

îš„Telephone Line Connectors
Note • Fax features are not available for some models. An optional package is required. For
information, contact our Customer Support Center.
No. Component Function
33 USB 2.0 interface
connector (optional)
Connected to a USB cable.
34 Parallel interface connector Connected to a computer using a centronics standard interface cable.
35 10BASE-T / 100BASE-TX
connector
Connected to a network cable.
36 <RESET> button Automatically turns the power off when detecting current leakage.
No.
Name on the
machine cover
Name on the
touch screen
Function
37 TEL - Used to connect an external telephone.
Note • Do not use this interface for external telephones when the
Additional G3 Port (optional) is installed.
• Do not connect other fax machines.
38 LINE 1 Line 1 Connected to a public telephone network.
39 LINE 2
(optional)
Line 2 Connected to a public telephone network.
40 LINE 4
(optional)
Line 4 Connected to a public telephone network.
41 OP. TEL
(optional)
- Used to connect an external telephone when an Additional G3
Port (optional) is
installed.
To Next Page
