Paper Jams in the Top Left Cover A
The following describes how to clear paper jams in the top left cover A.
Use the green lever A1 or A2 to clear the paper jams in the top left cover A. Follow the
instructions displayed and remove the jammed paper.
The following sections separately explain how to use the green levers A1 and A2 for
clearing paper jams.
When using the green lever A1.................................................................................................502
When using the green lever A2.................................................................................................503
When using the green lever A1

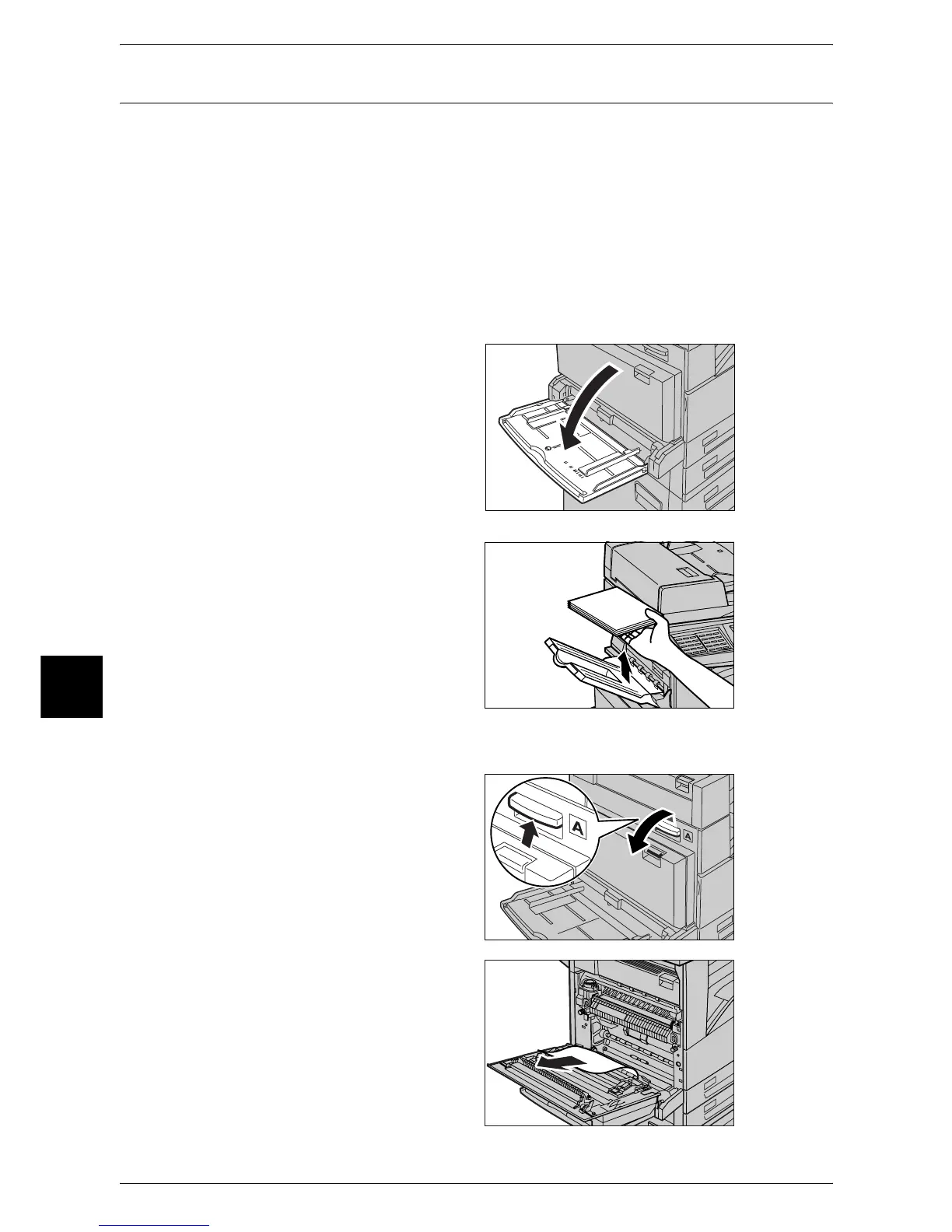

1 Open the Tray 5 (bypass).
2 If the Side Tray Kit (optional) is
attached, remove paper from the
side tray.
Note • If opened with the paper
loaded on the side tray, the
cover A will not be easily
folded up when closed.
3 Lift up the lever on the upper right
side of the cover A, and open the
cover A.
4 If the jammed paper does not reach
to the Fuser Unit, remove it. Then
proceed to Step 7.
If the jammed paper reaches to the
Fuser Unit, proceed to Step 5.
To Next Page
