2 Product Overview
30
Product Overview
2

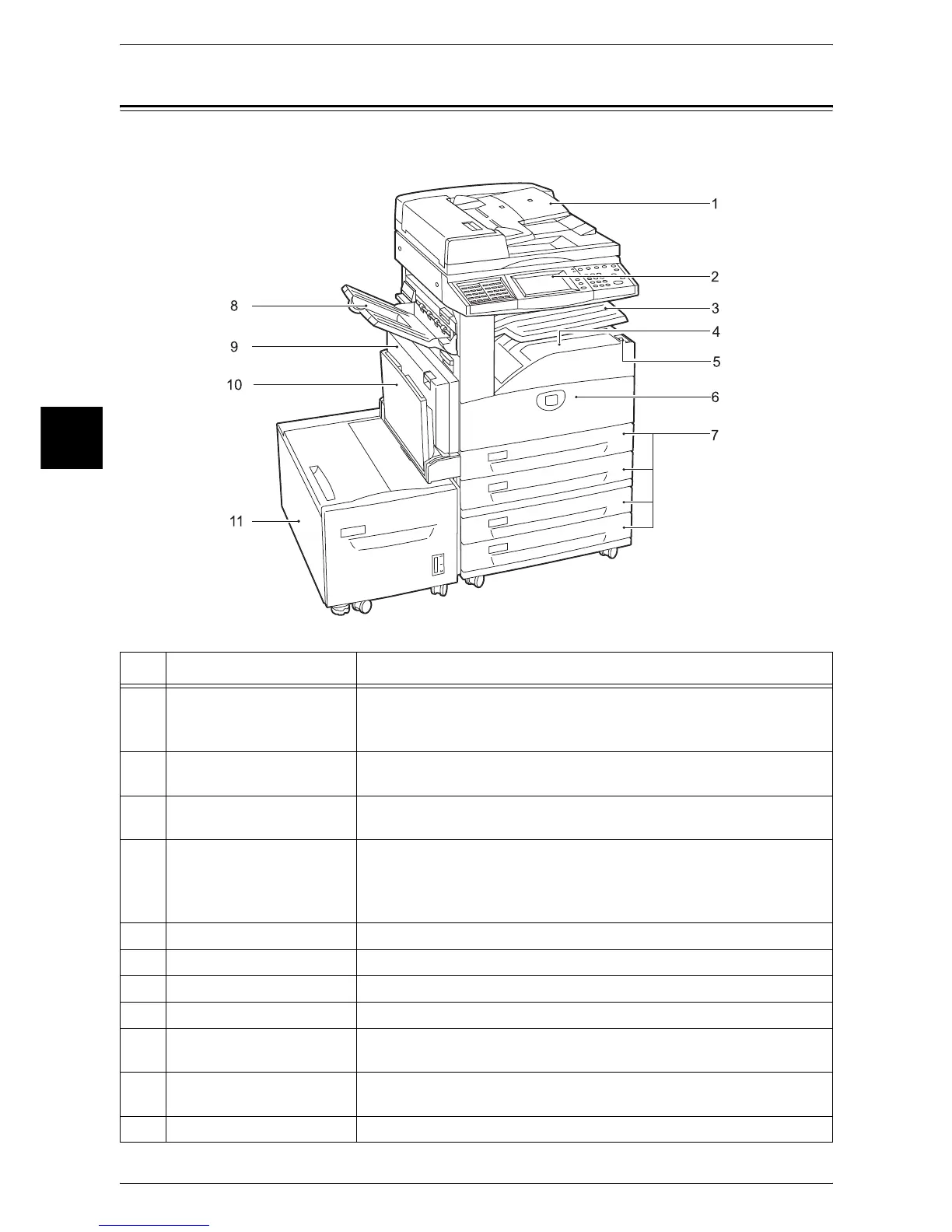

Machine Components
This section describes the main components and their functions of the machine.
No. Component Function
1 Duplex automatic
document feeder (optional)
Automatically feeds 2 sided originals from a stack.
Note • In this manual, the duplex automatic document feeder is abbreviated as
“document feeder”.
2 Control panel Consists of operation buttons, LED indicators and a touch screen.
Refer to "Control Panel" (P.40).
3 Exit 2 tray (optional) Printed or copied documents are delivered with the printed side facing
down.
4 Center output tray Printed or copied documents are delivered with the printed side facing
down.
Note • When the exit 2 tray is installed with the machine, the tray is referred to
as "center tray - lower", otherwise referred to as "center output tray".
5 Power switch Switches the power of the machine on/off.
6 Front cover Opened to replace consumables.
7 Tray 1 - 2, 3 - 4 (optional) Accommodates papers.
8 Side tray (optional) Printed or copied documents are delivered with the printed side facing up.
9 Auto duplex module
(optional)
Automatically prints or copies on the both sides of paper.
10 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other
special media) that cannot be loaded in the Trays 1 to 4, and 6.
11 Tray 6 (optional) Accommodates papers.
To Next Page
