Machine Components
31
Product Overview
2
C Finisher, C Booklet Finisher

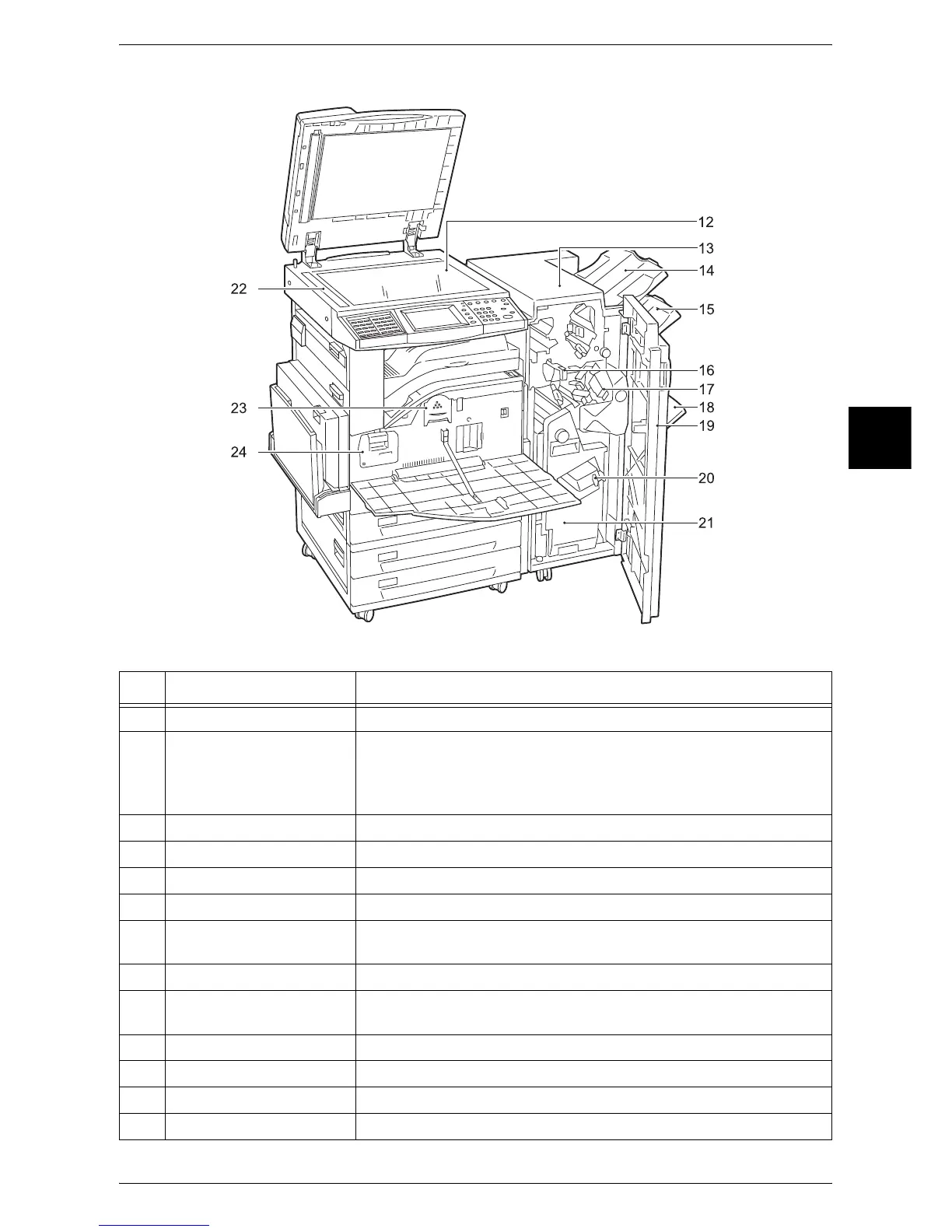

No. Component Function
12 Document glass Originals are loaded.
13 C Finisher (optional),
C Booklet Finisher
(optional)
Allows you to staple or punch printed or copied documents.
The C Booklet Finisher allows you to fold printed documents in half.
Note • In this manual, the C Finisher and C Booklet Finisher are abbreviated
as “finisher”.
14 Output tray Receives documents.
15 Finisher tray Stapled documents or punched documents are delivered.
16 Punch scrap container Collects scraps from the puncher.
17 Staple cartridge Staples are stored.
18 Booklet tray
(C Booklet Finisher only)
Receives documents when folding is selected in Booklet Creation.
19 Front cover Opened to clear paper jams, or replace staples.
20 Booklet module
(C Booklet Finisher only)
A module for folding documents in half and stapling the folded
documents.
21 Booklet staple cartridge Two staple cartridges for booklet creation (gutter) are installed.
22 Document feeder glass Scans documents loaded on the document feeder.
23 Toner cartridge Contains toner (image forming powder).
24 Drum cartridge Contains a photo conductor for transfer toner.
