Paper Jams in the Top Cover E

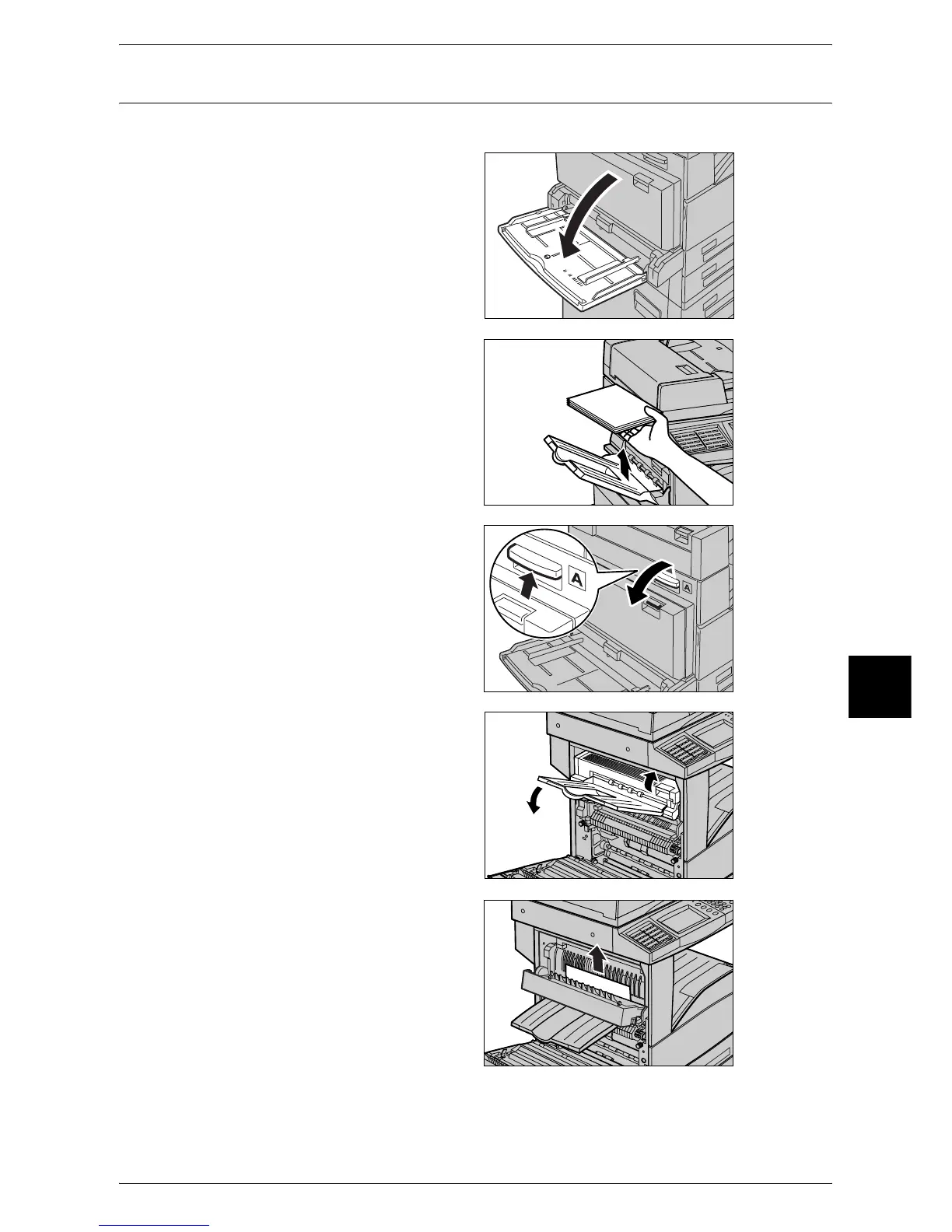

The following describes how to clear paper jams in the Top cover E.
1 Open the Tray 5 (bypass).
2 When the Side Tray Kit is installed,
remove paper from the side tray.
Note • If opened with the paper
loaded on the side tray, the
cover A will not be easily
folded up when closed.
3 Lift up the lever on the upper right
side of the cover A, and open the
cover A.
4 Lift up the handle to open the top
cover E.
5 Remove the jammed paper.
Note • If paper is torn, check for any
torn pieces of paper inside the
machine.
6 Close the top cover E.
7 Press the center section of the cover A to firmly close it.
8 Close the Tray 5 (bypass).
