This procedure is valid, if the PCIe SSD module is controlled by an
onboard controller. For more information, see the Intel VROC user
guide. If VMD function is disabled in BIOS, the PCIe SSD module is not
supported. If VMD function is enabled in BIOS, see the "Intel Virtual
RAID on CPU (Intel VROC) User Guide” for more information.
If the PCIe SSD module is controlled by a RAID controller of the PRAID
EP5x0i family, the PCIe SSD module can be installed during operation
(hot-plug), see "Installing 2.5-inch HDD/SSD modules" on page
165.
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 52
.
▶
Locate the correct drive bay, see "Installing 2.5-inch HDD/SSD modules" on
page 165.
▶
Depending on your operating system: "Shutting down the server" on
page 52.
Removing a 2.5-inch HDD/SSD dummy lock
In configuration with only one 8x 2.5-inch HDD backplane dummy locks
are installed to make it impossible to equip the bays with no HDD
backplane behind.

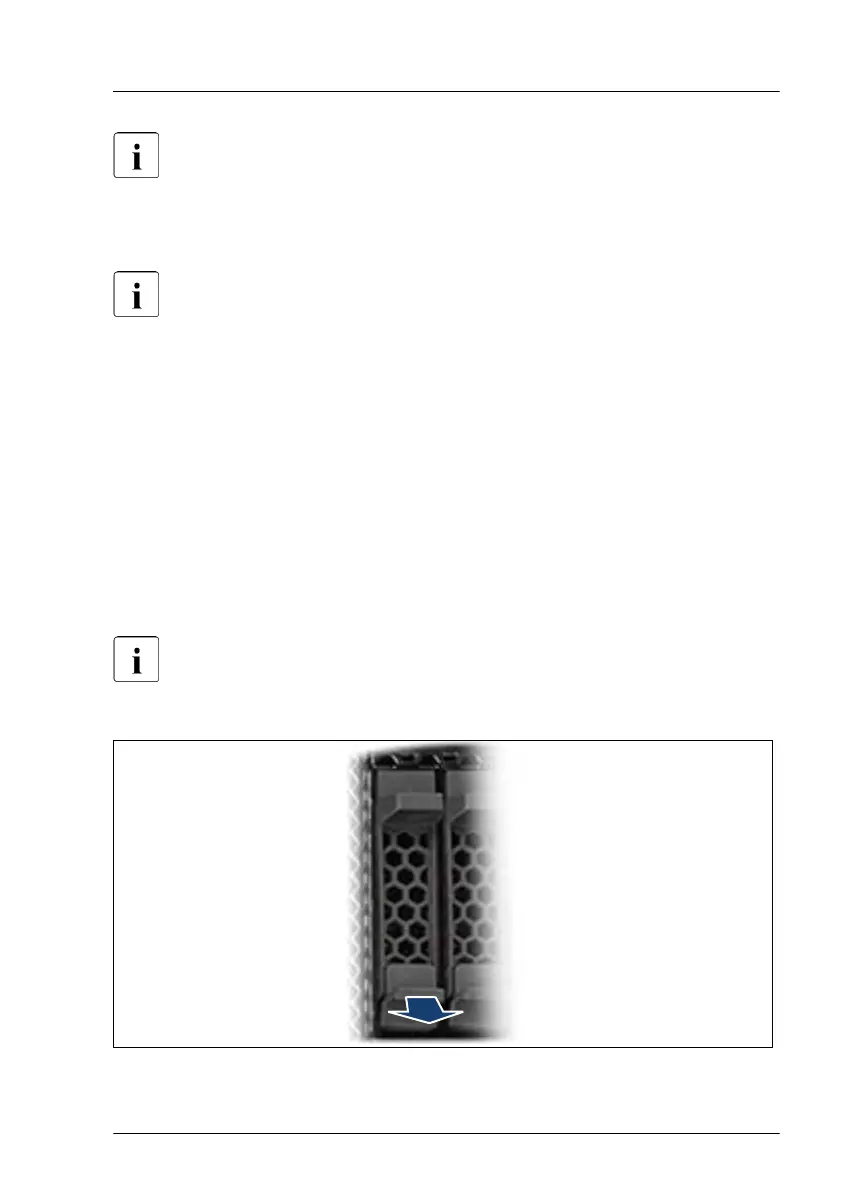

Figure 79: Removing the dummy lock
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 173
