Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Removing the defective 16x EDSFF SSD backplane (top)
▶
Disconnect all cables from the SSD backplane.

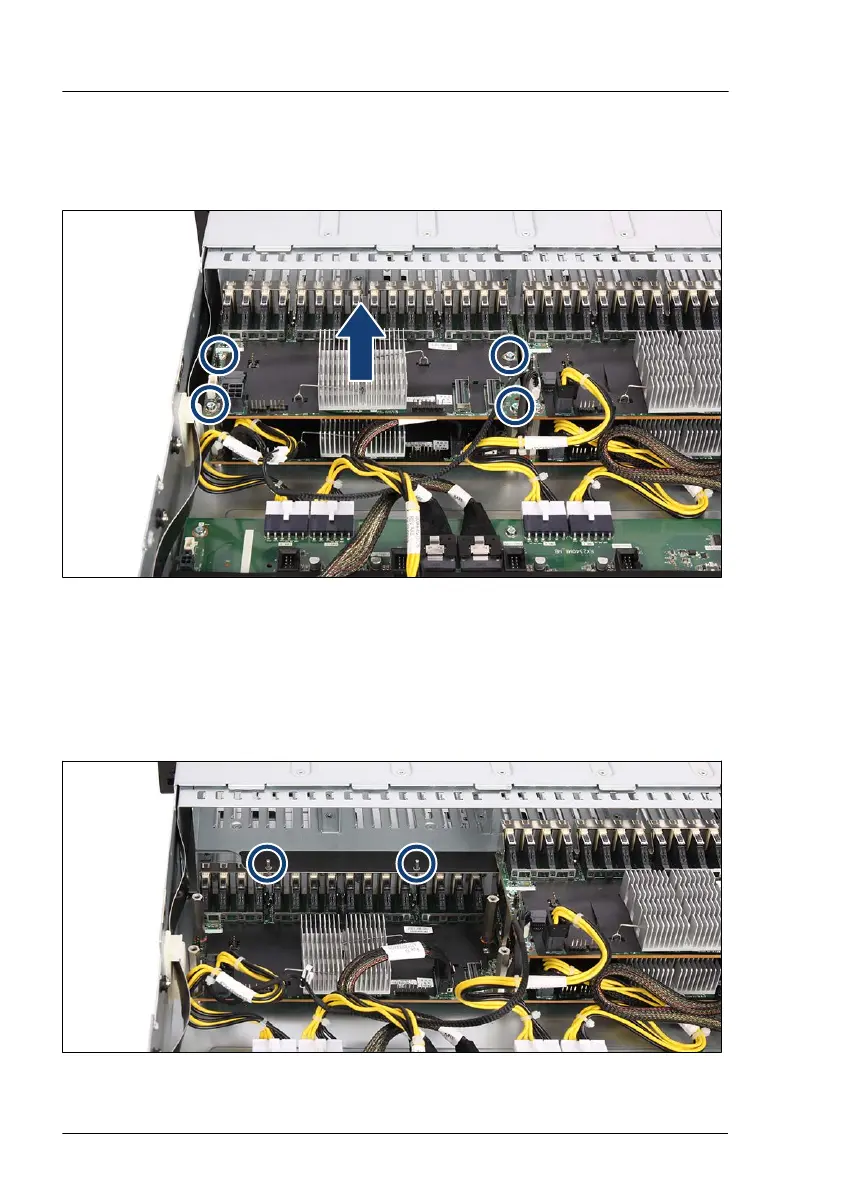

Figure 98: Removing the 16x EDSFF SSD backplane (top)
▶
Release the four screws (see circles).
▶
T
ake out the top SSD backplane.
Installing the new 16x EDSFF SSD backplane (top)
Figure 99: Pins for installing 16x EDSFF SSD backplane
Hard disk drive (HDD) / solid state disk (SSD)
198 Upgrade and Maintenance Manual RX2540 M6
