Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

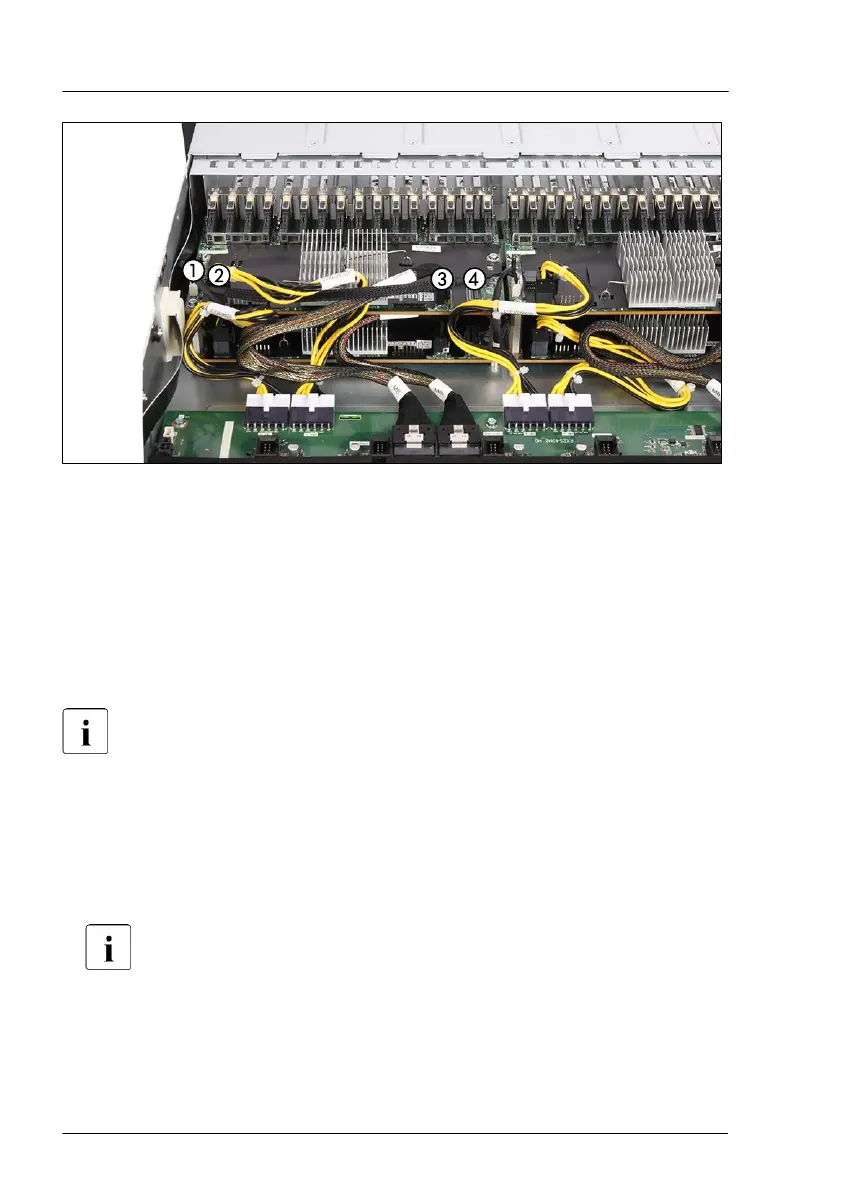

Figure 101: Connecting the cables to the 16x EDSFF SSD backplane (top)
▶
Connect the following cables to the SSD backplane:
1 OOB cable
2 Power cable
3 Slimline cable
4 Slimline cable
For the cable plan, see "Appendix B" on page 571
.
Concluding steps
▶
"Installing the fan cage" on page 76
.
▶
Insert all EDSFF SSD modules, see "Installing an EDSFF SSD module" on
page 192.
Make sure that you reinstall the EDSFF SSD module in the bay it was
located before the SSD backplane replacement.
▶
Insert all dummy modules, see "Installing an EDSFF SSD module" on
page 192
.
▶
"Reassembling" on page 60.
Hard disk drive (HDD) / solid state disk (SSD)
200 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
