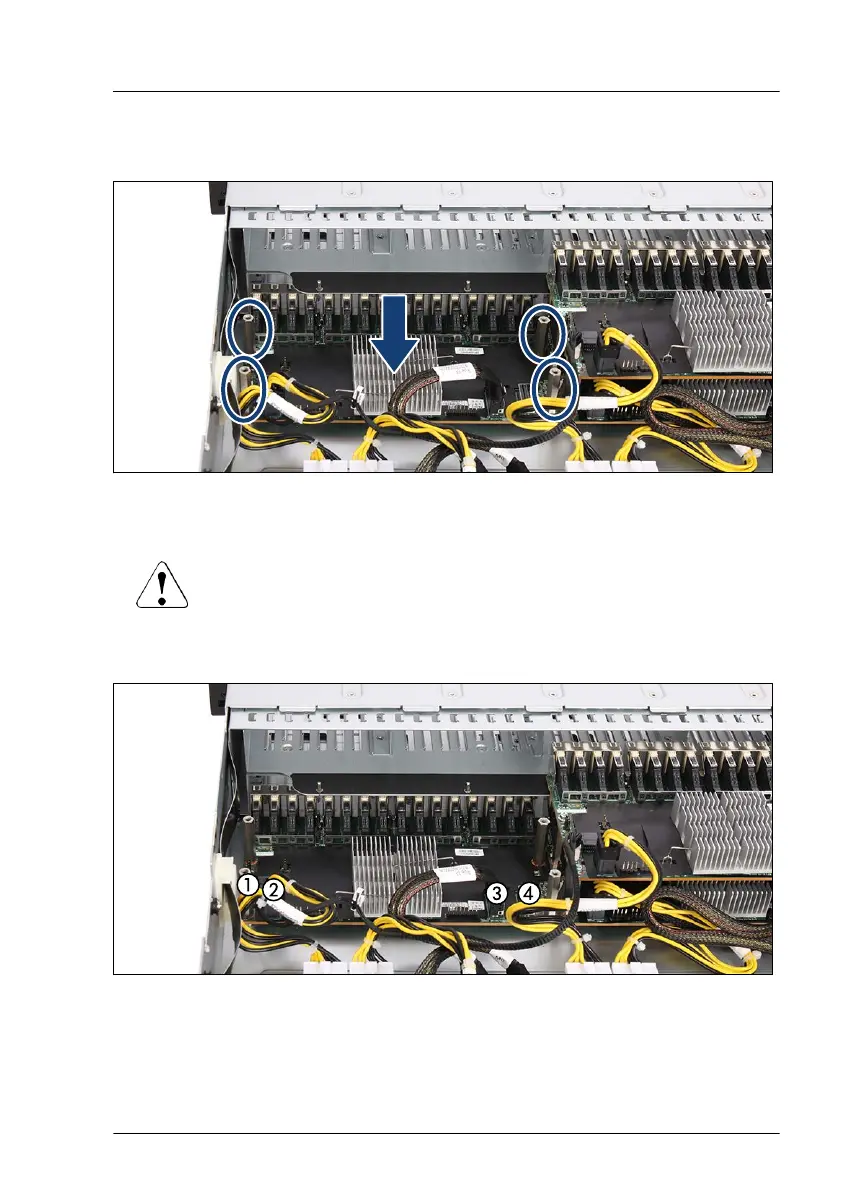

Notice the bolts (see blue circles) and the guide pins (see orange circles).
Figure 104: Installing the 16x EDSFF SSD backplane (bottom)
▶
Position the bottom SSD backplane on the four bolts and the two guide pins.
CAUTION
▶
Ensure that none of the cables are strained or damaged!
▶
Fasten the four hexagon standoffs (see circles).
Figure 105: Connecting the cables to the 16x EDSFF SSD backplane (bottom)
▶
Connect the following cables to the SSD backplane:
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 203
