Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

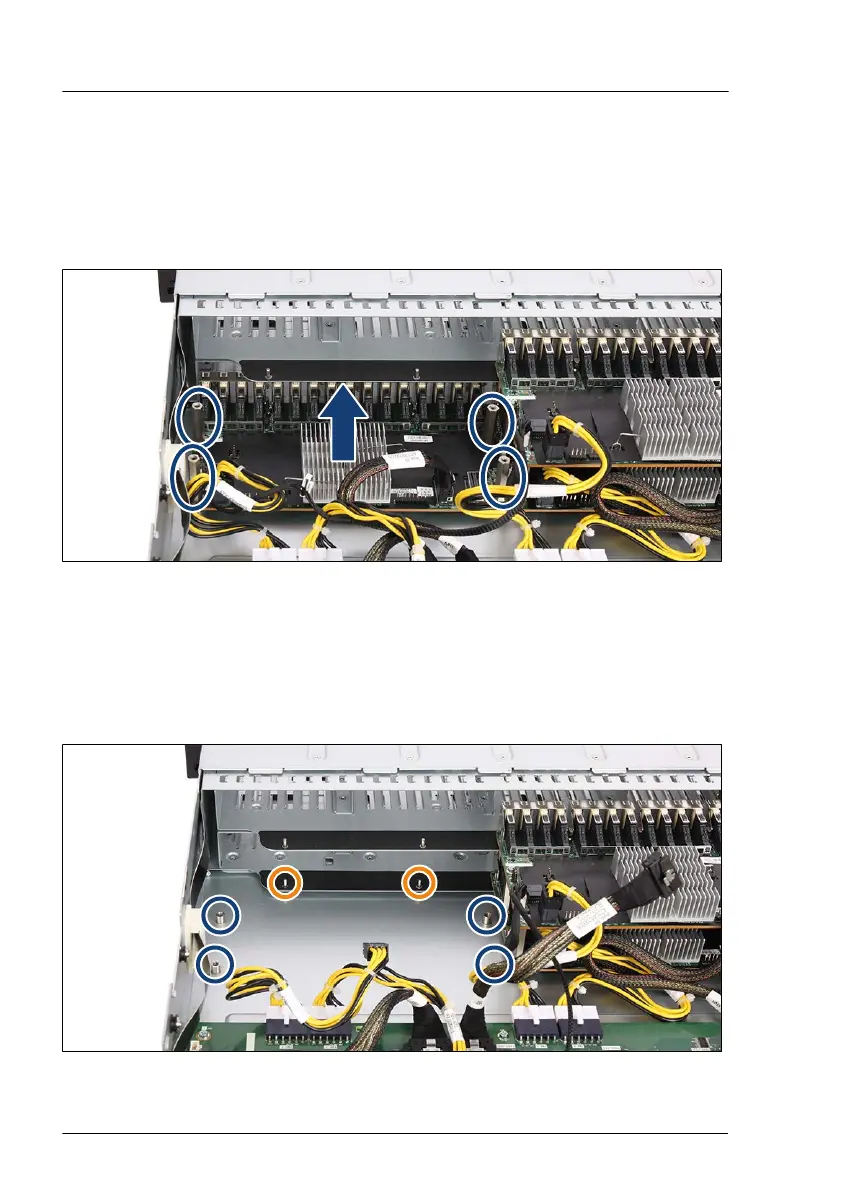

Removing the defective 16x EDSFF SSD backplane (bottom)
▶
Remove the top SSD backplane, see "Removing the defective 16x EDSFF
SSD backplane (top)" on page 198.
▶
Disconnect all cables from the SSD backplane (see circles).
Figure 102: Removing the 16x EDSFF SSD backplane (bottom)
▶
Remove the four hexagon standoffs (see circles).
▶
T
ake out the SSD backplane.
Installing the new 16x EDSFF SSD backplane (bottom)
Figure 103: Bolts for 16x EDSFF SSD backplane (bottom)
Hard disk drive (HDD) / solid state disk (SSD)
202 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
