Notice the guide pin on the PSU cage and the recess hole on the chassis
(see circles).

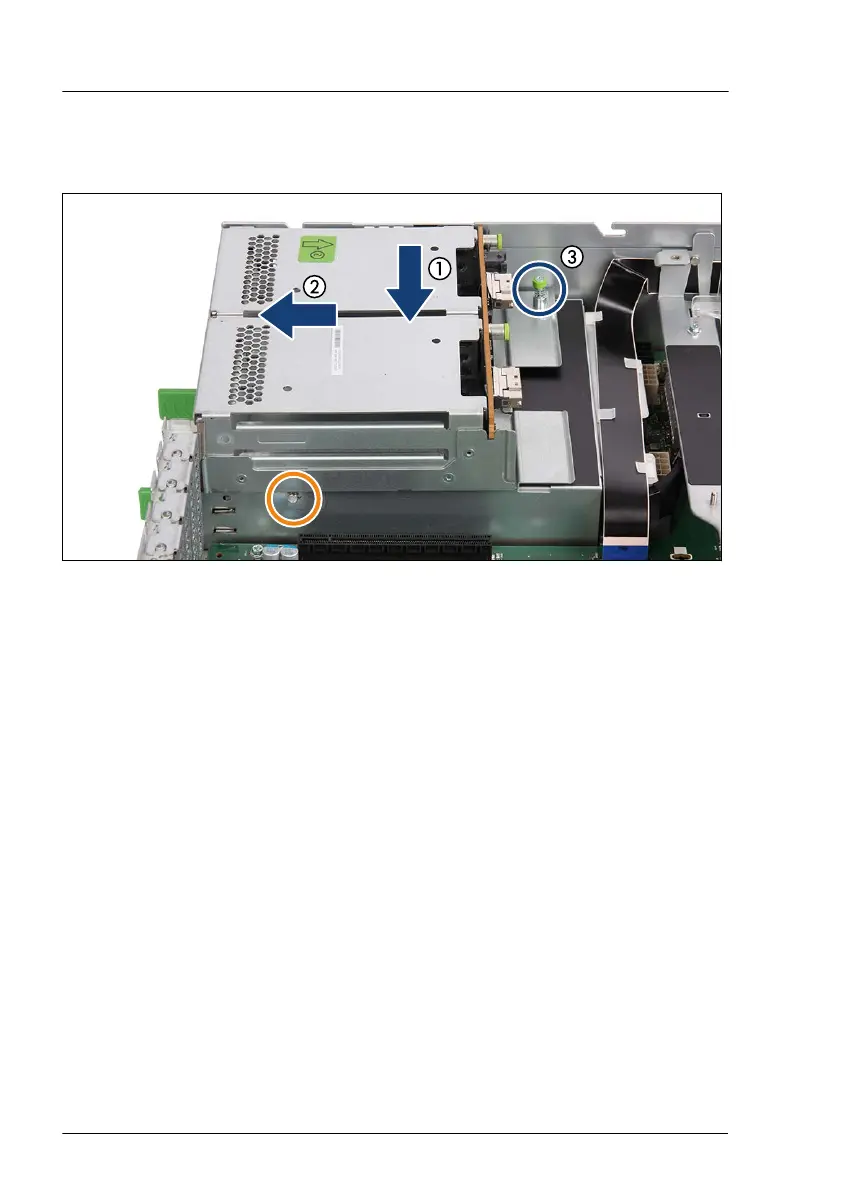

Figure 114: Installing the rear HDD cage 1
▶
Position the rear HDD cage into the chassis (1).
▶
Push the rear HDD cage in the direction of the arrow (2) until the hook (see
orange circle) fit in place.
▶
Fasten the screw (3, see blue circle).
▶
If applicable, install a RAID controller or a retimer card, see "Installing an
expansion card" on page
255
.
Hard disk drive (HDD) / solid state disk (SSD)
