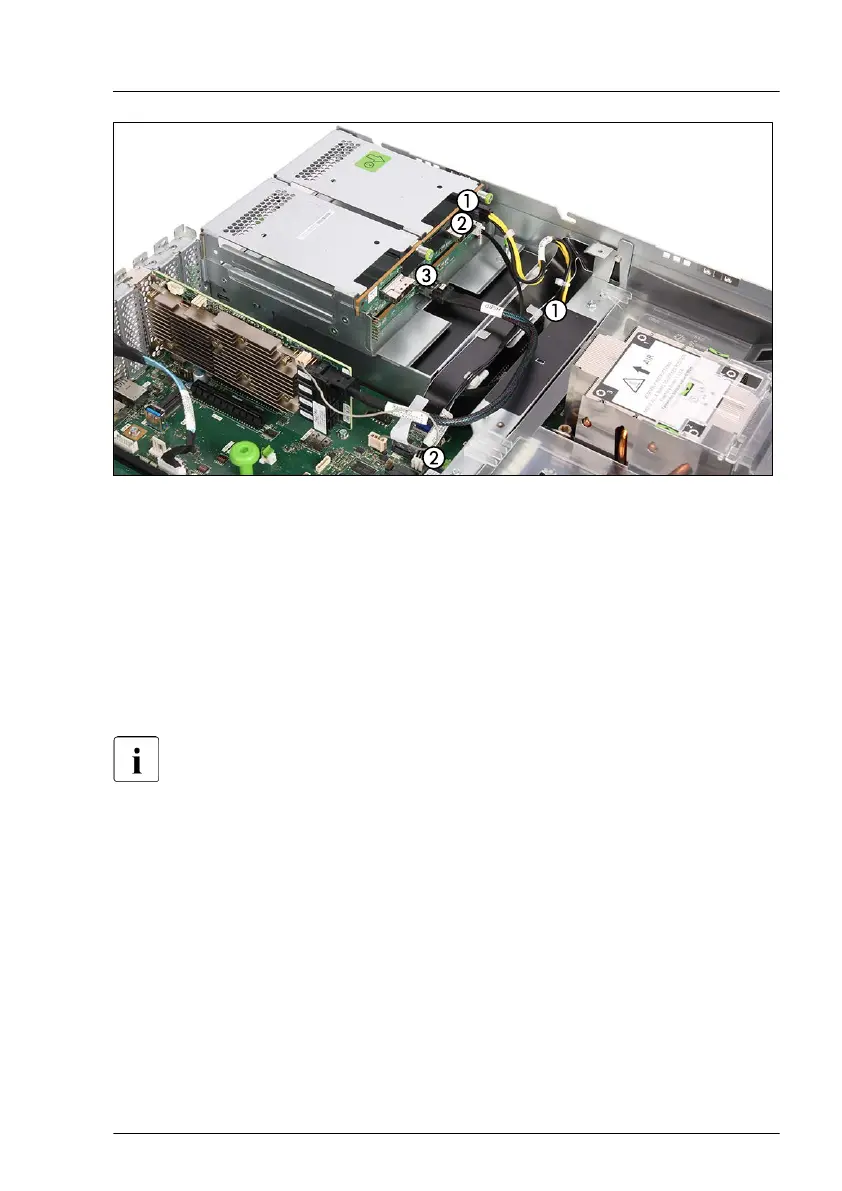

Figure 115: Connecting the cables to the rear HDD backplane (example with SATA cable)
▶
Connect the following cables to the rear HDD backplane:
1 Power cable to HDD backplane and connector "PWR9" on system
board
2 OOB cable to HDD backplane and connector "SMB3" on system
board
3 SAS/SATA cable depending on configuration
For the cable plan, see chapter "Appendix B" on page 571.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 215
