Fujitsu PRIMERGY RX2540 M6

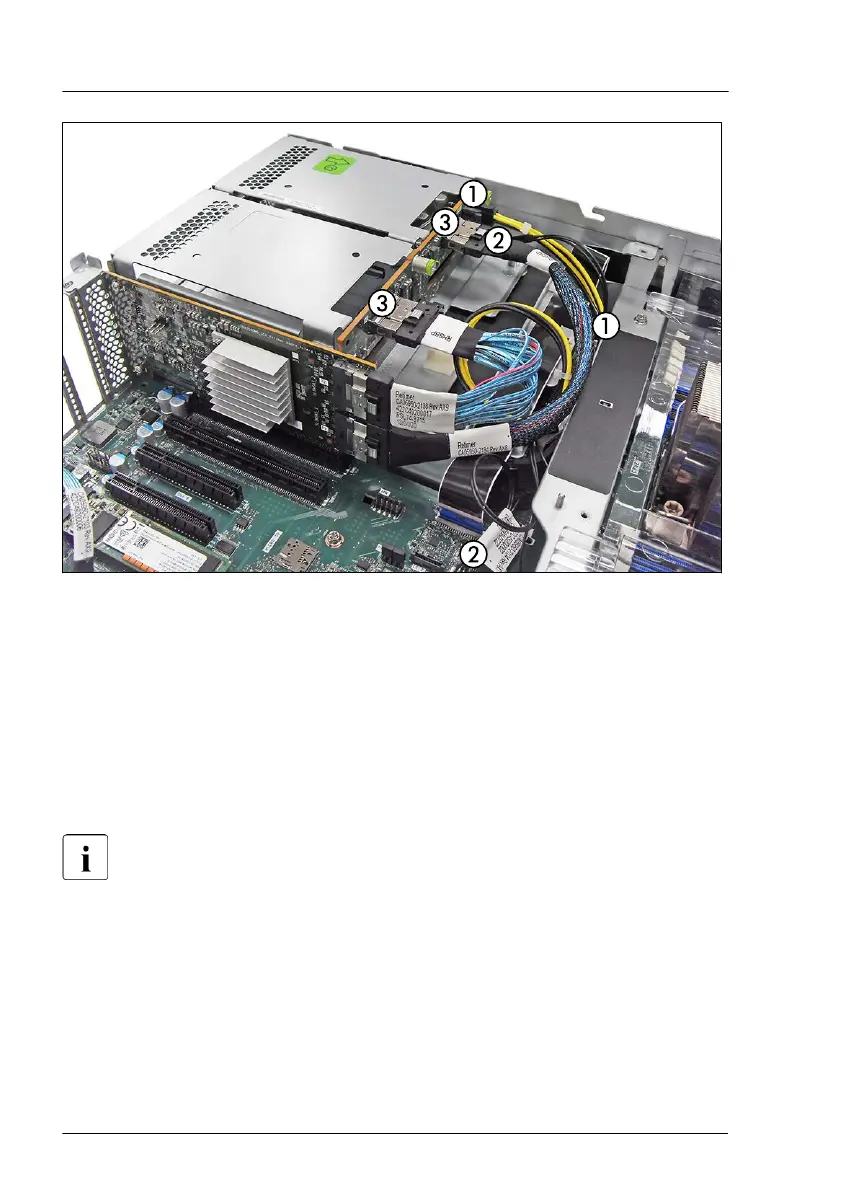

Figure 116: Connecting the cables to the rear HDD backplane (example with slimline cable)
▶
Connect the following cables to the rear HDD backplane:
1 Power cable to HDD backplane and connector "PWR9" on system
board
2 OOB cable to HDD backplane and connector "SMB3" on system
board
3 Slimline cable depending on configuration
For the cable plan, see chapter "Appendix B" on page 571.
Installing additional HDD/SSD/PCIe SSD modules
▶
Insert additional HDD/SSD modules, see "Installing 2.5-inch HDD/SSD
modules" on page 165
or PCIe SSD modules, see "Installing 2.5-inch PCIe
SSD modules" on page 172.
Hard disk drive (HDD) / solid state disk (SSD)
216 Upgrade and Maintenance Manual RX2540 M6
