Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

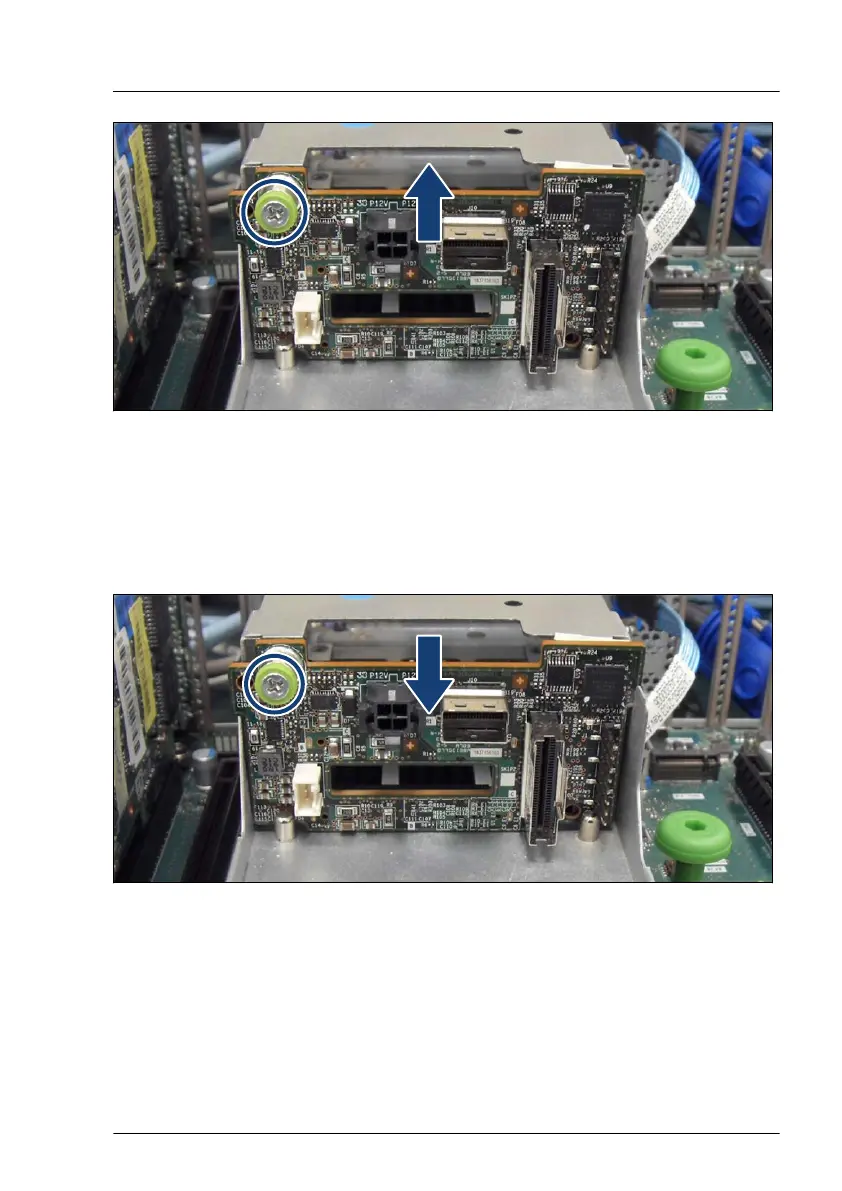

Figure 123: Removing the rear 2x 2.5-inch HDD backplane
▶
Loosen the screw (see circle).
▶
T
ake out the rear HDD backplane.
Installing the rear 2x 2.5-inch HDD backplane
Figure 124: Installing the rear 2x 2.5-inch HDD backplane
▶
Position the rear HDD backplane.
▶
Fasten the screw (see circle).
▶
Connect the cables to the rear HDD backplane, see Figure 1
19 or
Figure 120.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 225

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
