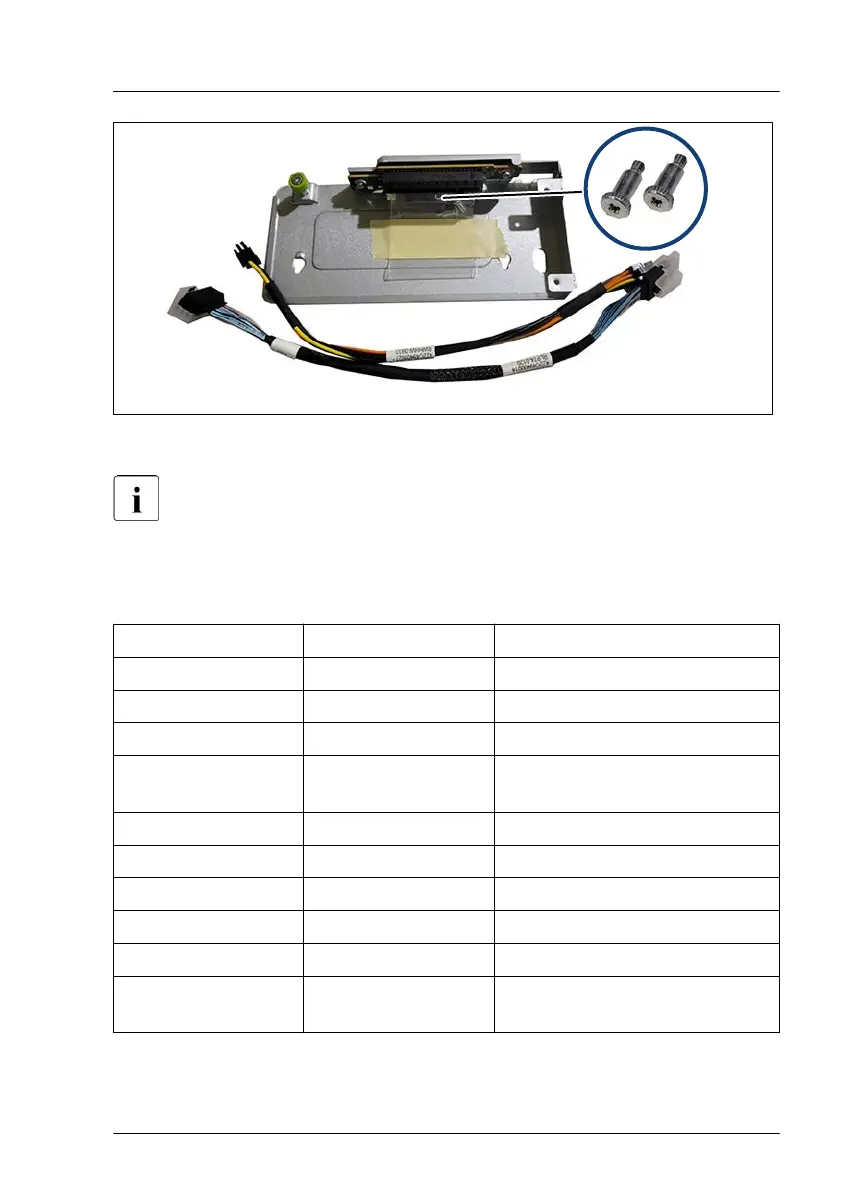

Figure 130: Internal RAID riser module kit
For system relevant information, see the hardware configurator of your
server available online at the following address:
https://ts.fujitsu.com/products/standard_servers/index.htm
For Japan:
https://www.fujitsu.com/jp/products/computing/servers/primergy/
Slot offered
Type Description
Slot 1 (CPU1) PCIe Gen4 x16 low profile slot
Slot 2 (CPU1) PCIe Gen4 x16 low profile slot
Slot 3/4 (CPU1) PCIe Gen4 x8 full height slot; riser module 1
Slot 3 (CPU1)
GPGPU Riser
PCIe Gen4 x16 full height slot; riser module 1
Slot 5 (CPU2) PCIe Gen4 x8 low profile slot
Slot 6 (CPU2) PCIe Gen4 x8 low profile slot
Slot 7 (CPU2) PCIe Gen4 x16 low profile slot
Slot 8 (CPU2) PCIe Gen4 x16 low profile slot
Slot 9/10 (CPU2) PCIe Gen4 x8 full height slot; riser module 2
Slot 9 (CPU2)
GPGPU Riser
PCIe Gen4 x16 full height slot; riser module 2
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 235

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
