Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Slot offered Type Description
Internal RAID Riser
Module (CPU1)
PCIe Gen4 x8 low profile slot
Slot 2 and 8 are normal PCIe slots or usable for slot expansion for riser
modules. Slot 3/4, slot 9/10, slot 3 and slot 9 are only available with a
GPGPU riser module.
As an option, up to two rear HDD cages can be installed. In this case
the riser modules are not available.
As an option, an internal RAID riser module can be installed behind
HDD backplane.

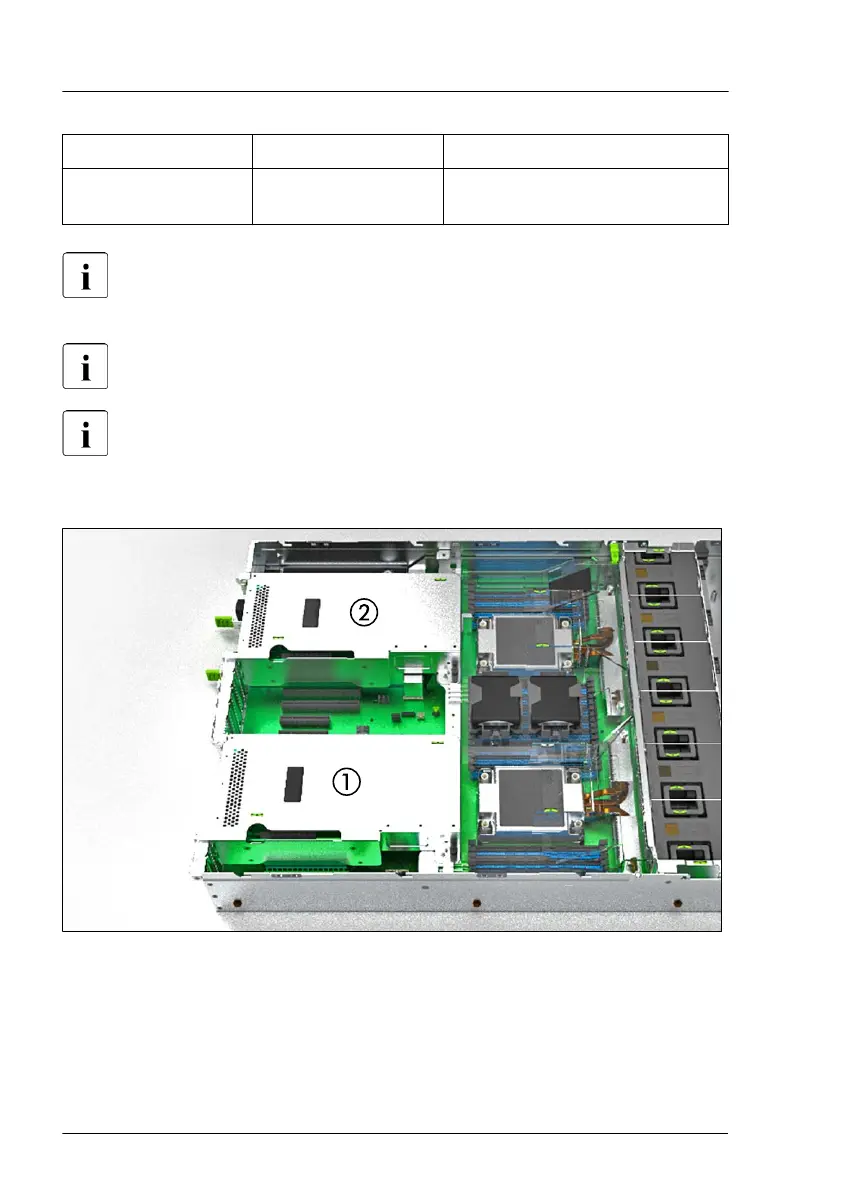

Position of riser modules
Figure 131: Positions of riser modules
1 Riser module 1, offers PCIe slot 3/4 or
PCIe slot 3 (GPGPU Riser).
2 Riser module 2, offers PCIe slot 9/10
or PCIe slot 9 (GPGPU Riser).
Expansion cards and backup units
236 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
