Example PRAID EP5xxi

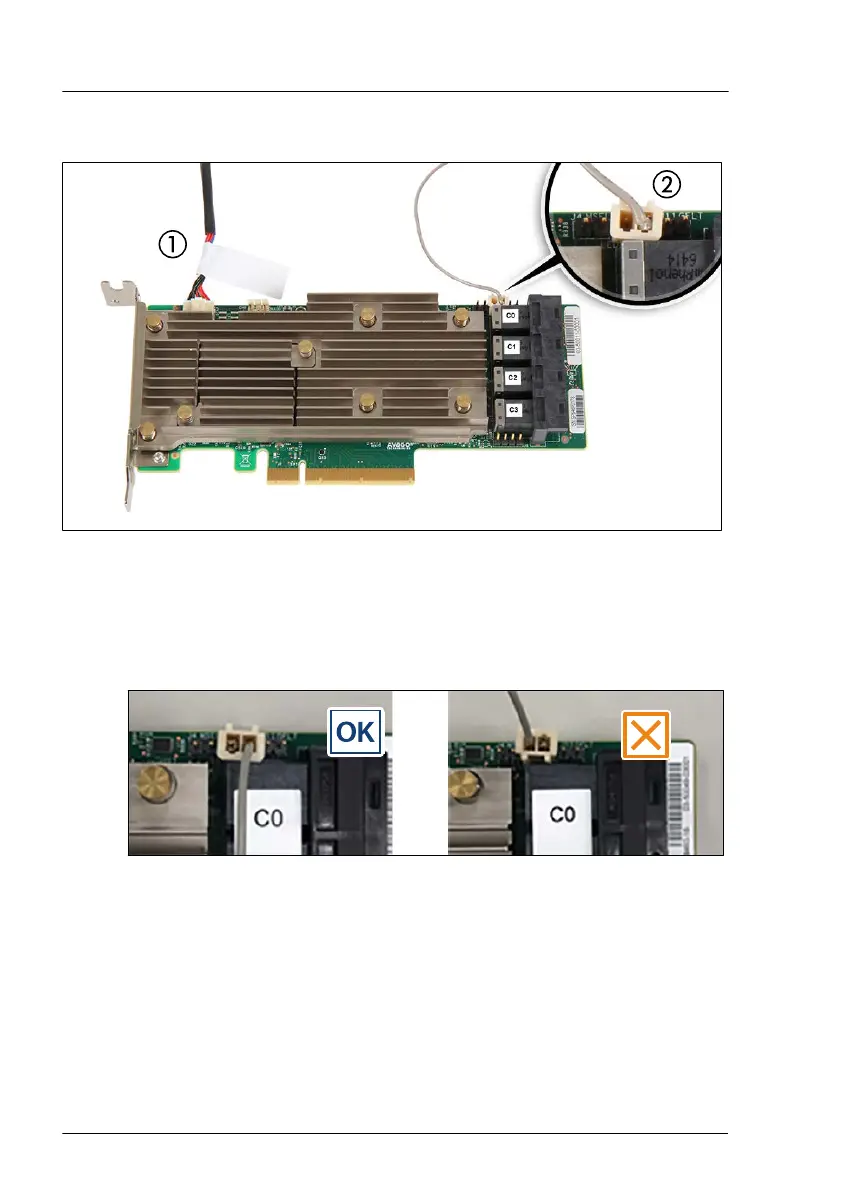

Figure 152: Connecting the cables to the PRAID EP5xxi
▶
Connect the following cables:
1
If applicable, FBU cable
2
If applicable, HDD LED cable
