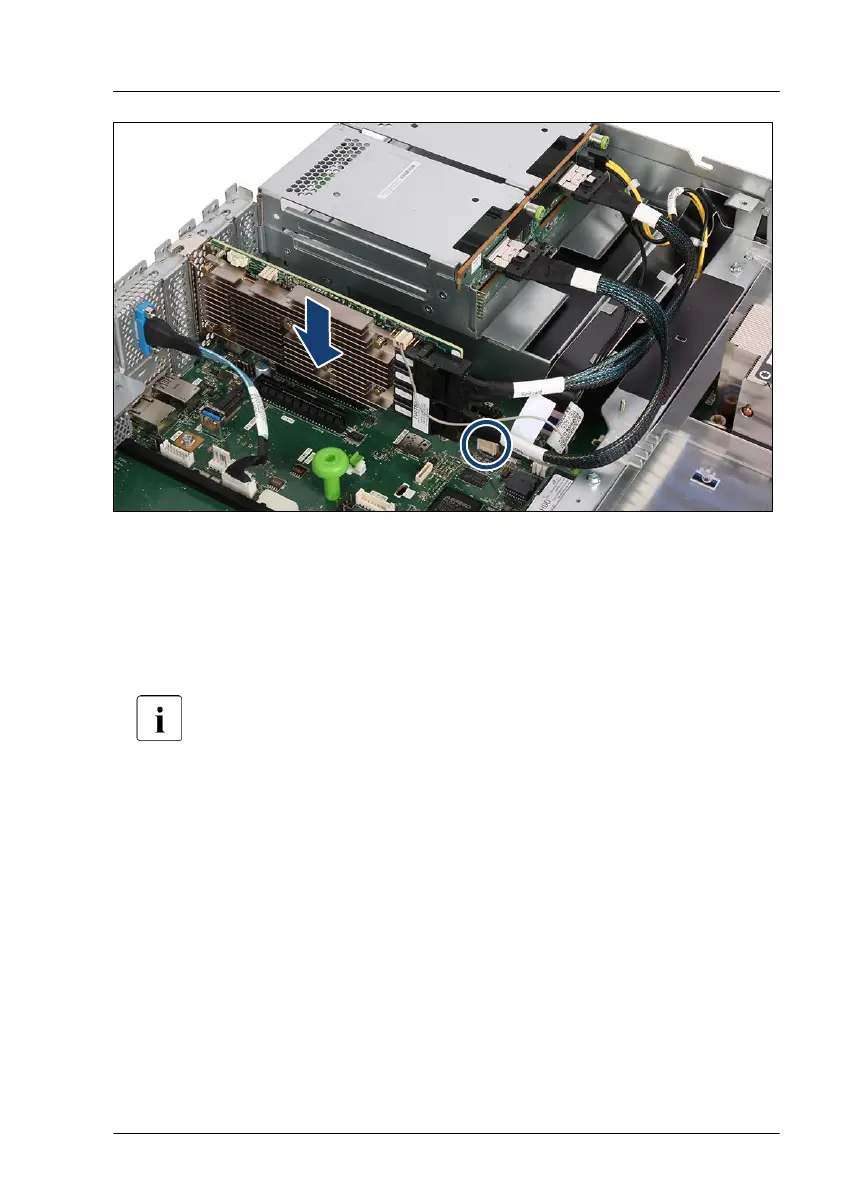

Figure 153: Installing the PRAID EP5xxi
▶
Carefully insert the PRAID EP5xxi into the desired PCI slot and press down
firmly until it is fully seated in the slot.
▶
Connect the HDD LED cable to the system board (see circle).
▶
Connect the SAS cables to the corresponding HDD backplane.
For the cable plan, see "Appendix B" on page 571
.
