Fujitsu PRIMERGY RX2540 M6

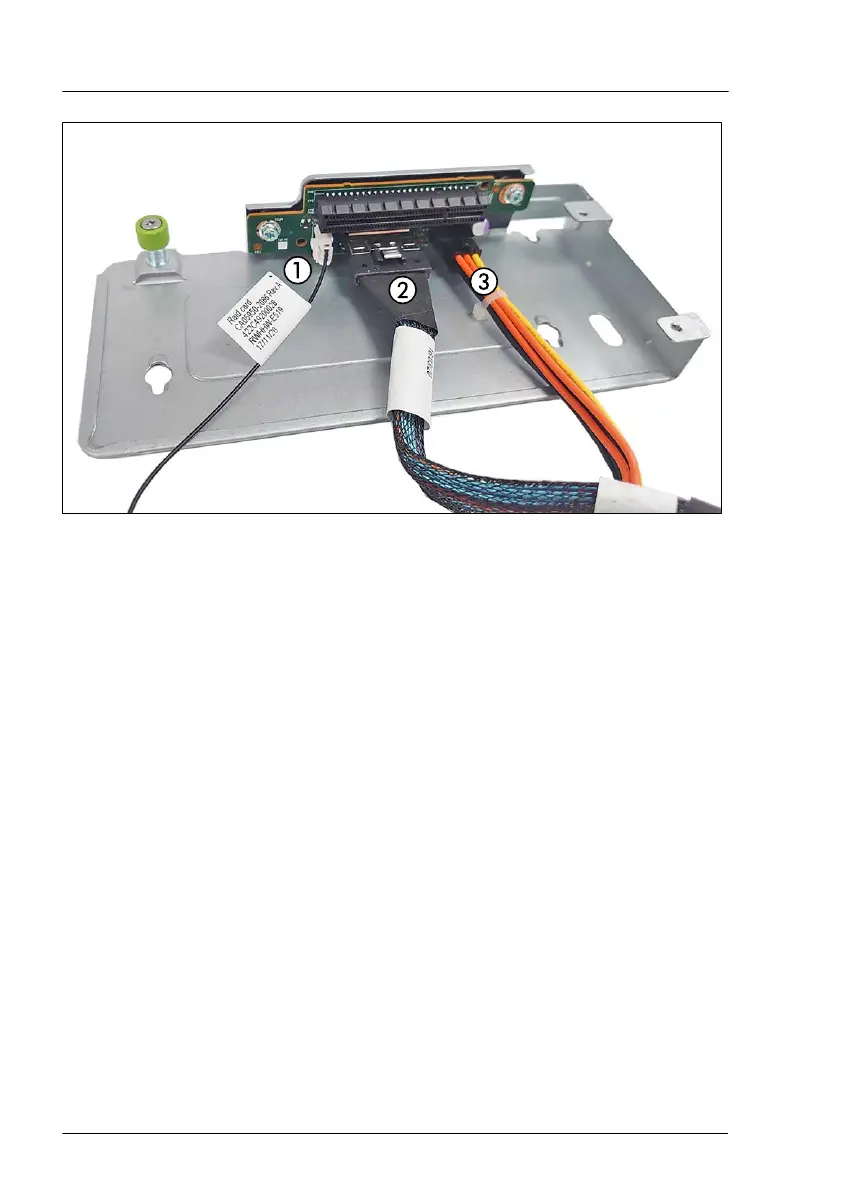

Figure 160: Connecting cables to the internal RAID riser module
▶
Connect the following cables to the internal RAID riser module:
1 HDD LED cable (option)
2 NVMe cable, depending on configuration
3 Power cable
Expansion cards and backup units
268 Upgrade and Maintenance Manual RX2540 M6
