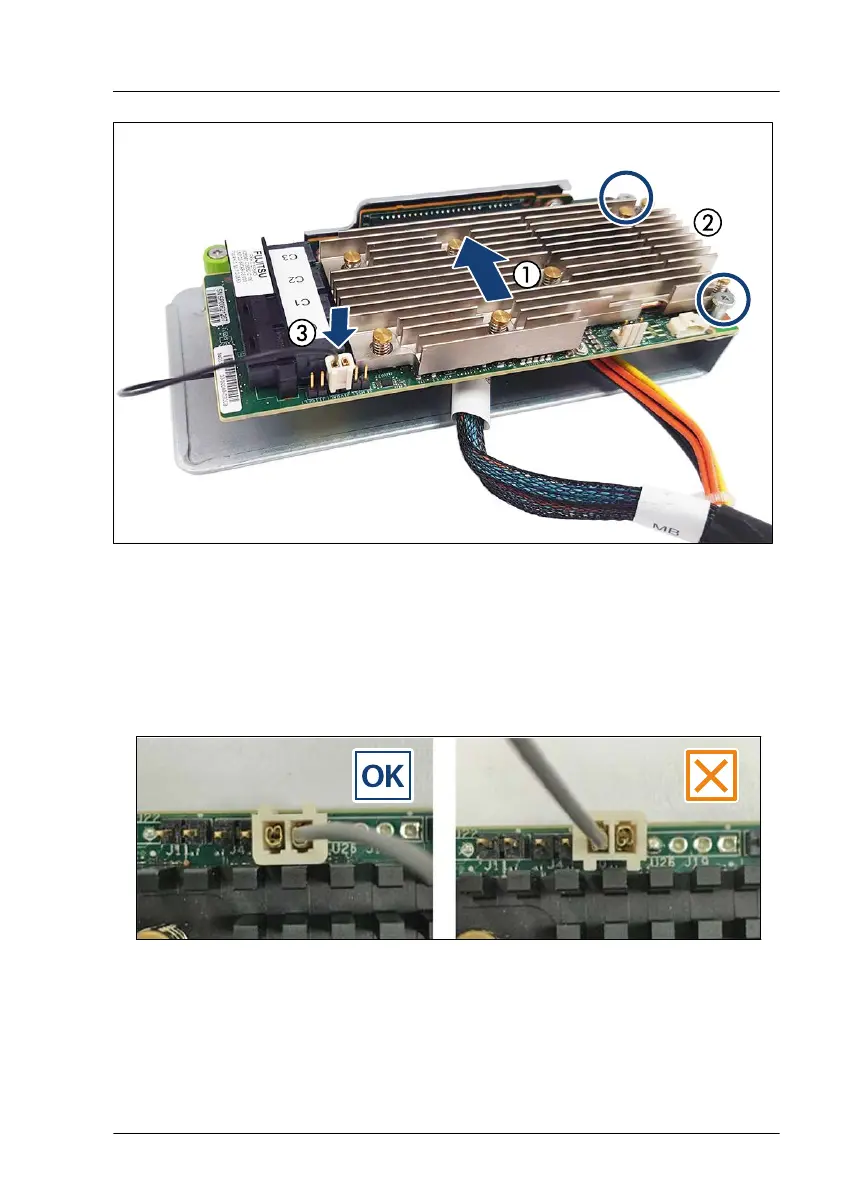

Figure 161: Installing an expansion card (example RAID EP5xxi controller)
▶
Carefully press the internal RAID EP5xxi controller into the riser card slot,
until it clicks into place (1).
▶
Fasten the internal RAID controller with two screws (2).
▶
Connect the HDD LED cable (3). (PRAID RAID card only)
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 269
