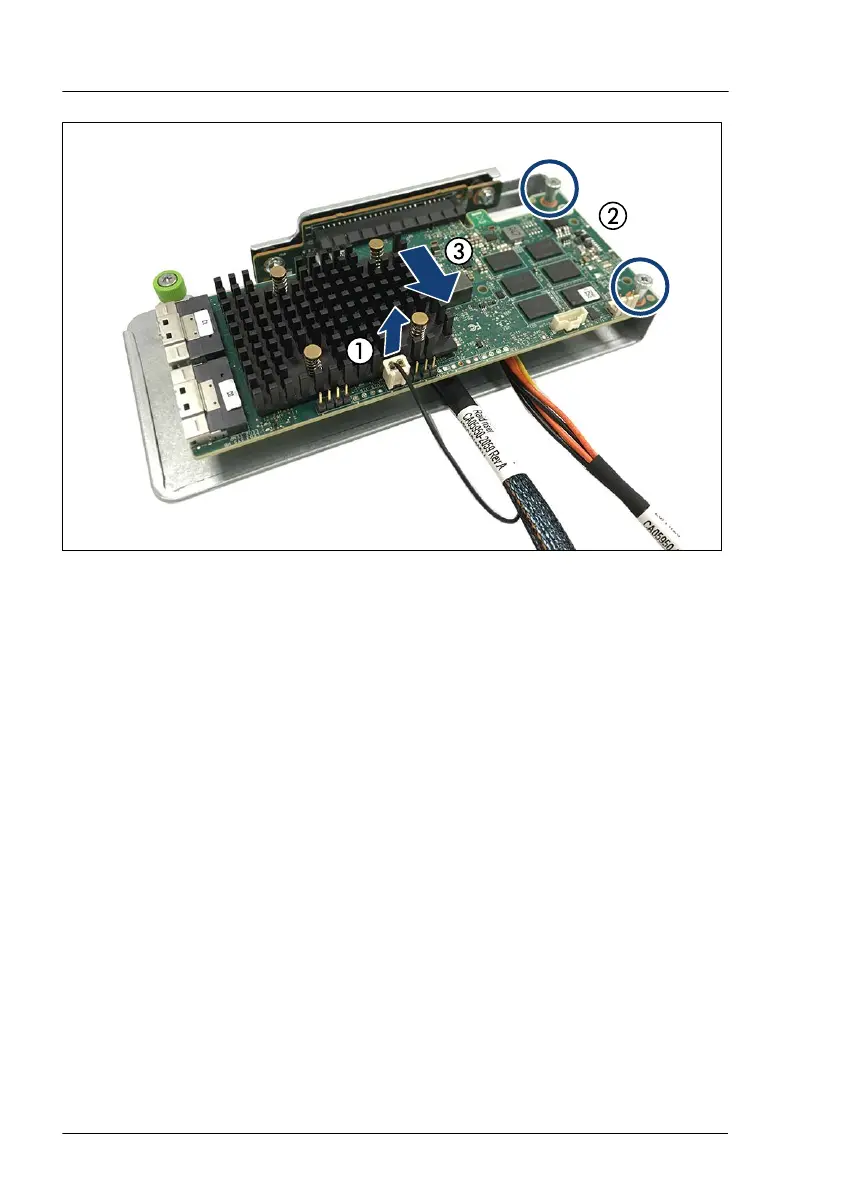

Figure 168: Removing the expansion card (example RAID EP6xxi controller)
▶
Disconnect the HDD LED cable (1).
▶
Remove the two screws (2).
▶
Pull out the expansion card from the riser card slot (3).
Concluding steps
▶
"Installing the fan cage" on page
76
.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
▶
If applicable, update the system information of your server using the Chassis
ID Prom Tool, see "Using the Chassis ID Prom Tool" on page 110.
▶
"Resuming BitLocker functionality" on page 105.
Expansion cards and backup units
276 Upgrade and Maintenance Manual RX2540 M6
