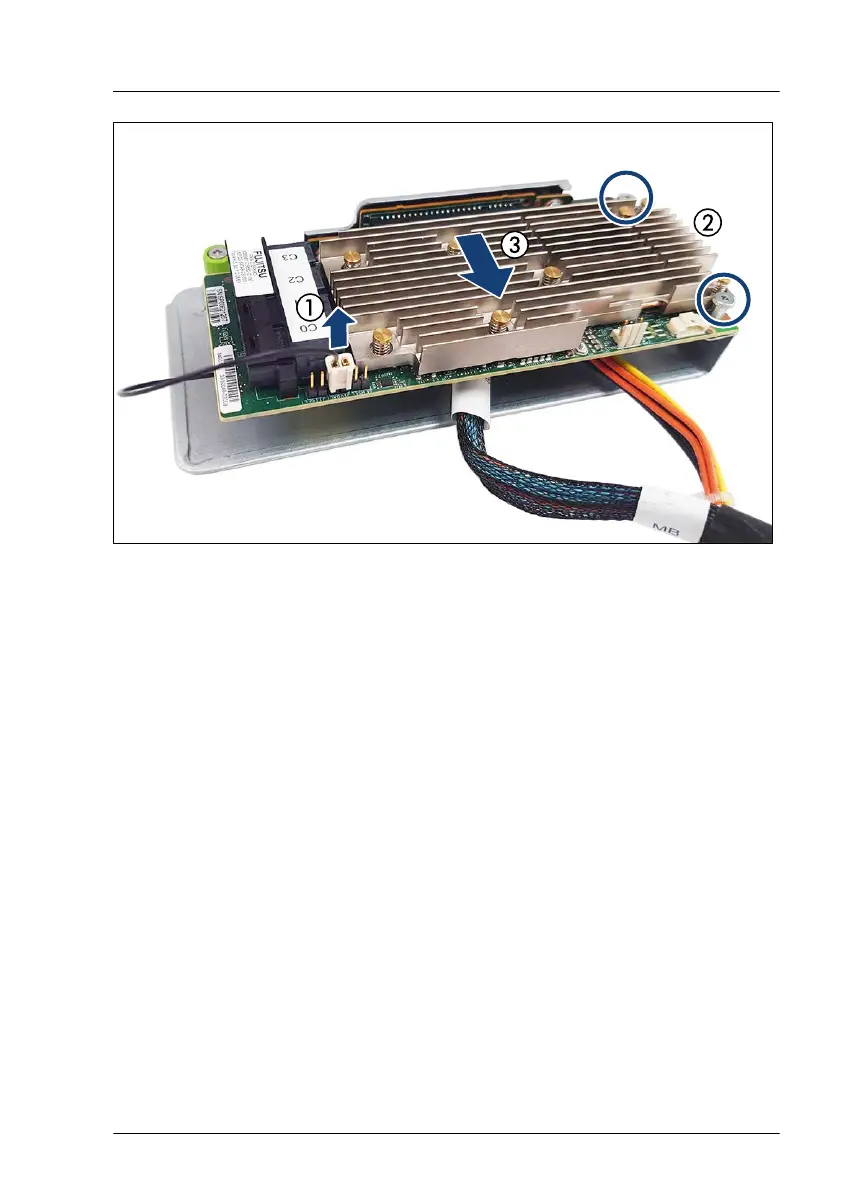

Figure 167: Removing the expansion card (example RAID EP5xxi controller)
▶
Disconnect the HDD LED cable (1).
▶
Remove the two screws (2).
▶
Pull out the expansion card from the riser card slot (3).
Expansion cards and backup units
